Din Bulkhead Union

Description & Features

Manufactured from steel in a straight configuration, this DIN Bulkhead Union connects two M18 x 1.5 DIN tube ends of the same size, making it suited for panel or bulkhead mounting applications where a line must pass through a partition. Both sides share an L12 size designation with male DIN tube connections, providing a symmetrical, through-panel union in a single compact fitting.

Supplied by Adaptall, the fitting measures 53mm in overall length with a 29mm center-to-panel dimension and a 10mm thread engagement length. The 24mm wrench flats on both sides allow for secure installation and removal. The all-steel construction supports use in demanding hydraulic line installations where consistent thread form and material integrity are required.

SKU: 5040L-12

Supplier Part Number (MPN): 5040L-12

Specifications

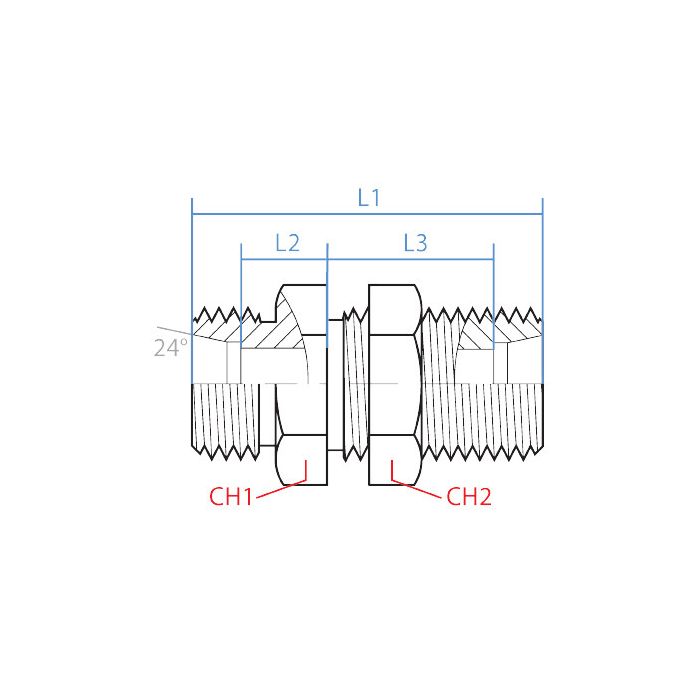

CH1 Width 24mm	CH2 Width 24mm	L1 Length 53mm	L2 Length 10mm	L3 Length 29mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-12	Product Weight 0.18 lbs
