Din Bulkhead Union Complete

Description & Features

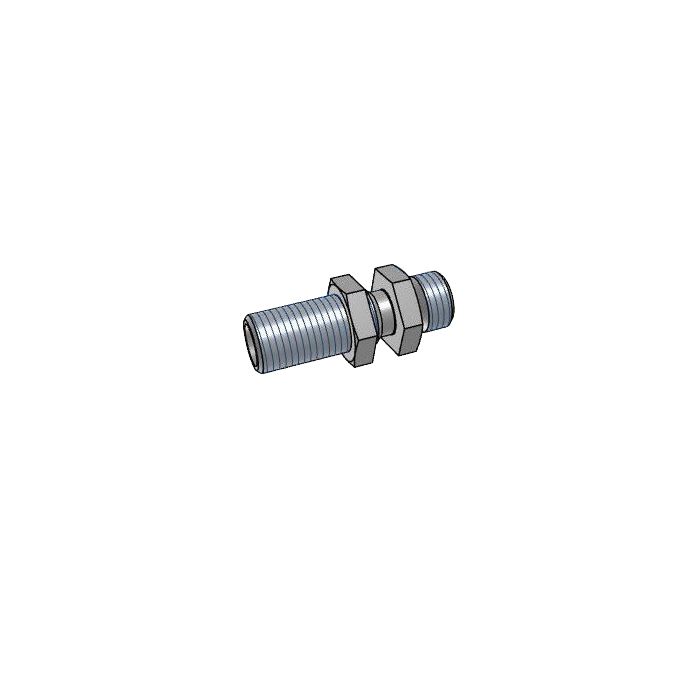

This Adaptall Din Bulkhead Union Complete is constructed of durable steel for reliable performance. Featuring a straight shape, this union is designed with M18 X 1.5 callouts on both ends.

The Adaptall Din Bulkhead Union Complete has a Side 1 and Side 2 Size of L12, and Side 1 and Side 2 Type of Din Tube. Adaptall Ch1 Width and Adaptall Ch2 Width both measure 24mm. Adaptall L1 Length measures 53mm, Adaptall L2 Length measures 10mm, and Adaptall L3 Length measures 29mm.

SKU: 5040L-12C

Supplier Part Number (MPN): 5040L-12C

Specifications

CH1 Width 24mm	CH2 Width 24mm	L1 Length 53mm	L2 Length 10mm	L3 Length 29mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040L-12C	Product Weight 0.18 lbs

Product Questions & Answers (2)

Question by: Darryl T on Sep 15, 2025, 12:48 PM

got a bulkhead pass-through i need to replace. is this the straight one with m18 x 1.5 on both sides?

Answer by: Customer Support on Sep 17, 2025, 6:31 AM

Built as a straight bulkhead union, it has M18 x 1.5 male threads on both ends, with both sides set up for DIN tube size L12.

Question by: Roger W on Nov 16, 2025, 5:05 PM

So this is a DIN tube fitting, right? Both sides? Just want to make sure before I order a bunch.

Answer by: Customer Support on Nov 17, 2025, 8:34 PM

That's correct. This Adaptall fitting features DIN tube connections on both ends, size L12, according to the specs.
