Metric Bulkhead Nut

Description & Features

Manufactured from steel, this M22 x 1.5 Metric Bulkhead Nut from Adaptall is designed for panel or bulkhead mounting applications in hydraulic systems. With a 22mm female metric thread on Side 1, a 27mm across-flats width, and an overall length of 8.8mm, it provides a compact and secure connection point where lines pass through a panel or enclosure wall.

The Metric Bulkhead Nut is a component-style fitting suited for use with Adaptall's modular assembly system, allowing it to be paired with compatible adapters and bodies to build application-specific hydraulic connections. Its steel construction supports reliable performance in demanding industrial environments.

SKU: 5041-22

Supplier Part Number (MPN): 5041-22

Specifications

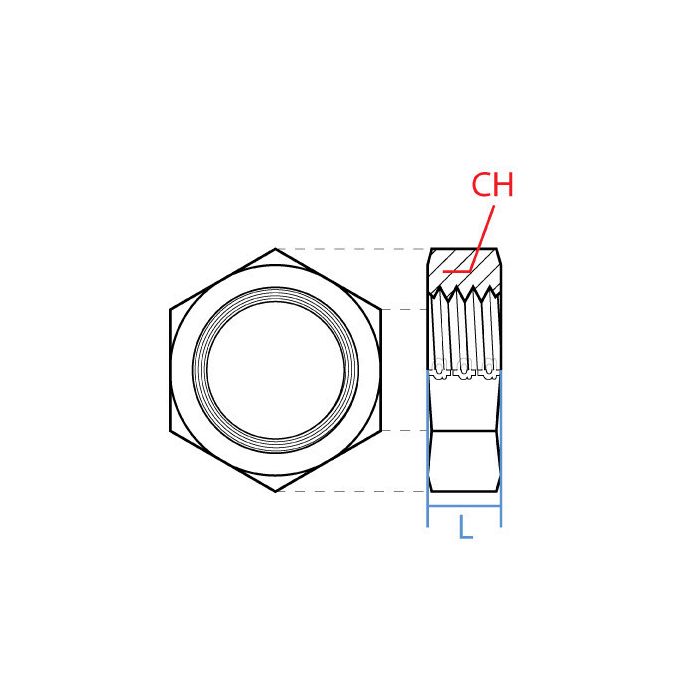

CH Width 27mm	L Length 8.8mm	Adaptall Material Steel	Adaptall Shape Component	Side 1 Callout M22 X 1.5	Side 1 Gender F	Side 1 Size 22mm	Side 1 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5041-22	Product Weight 0.04 lbs

Product Questions & Answers (1)

Question by: Billy H on Jun 13, 2025, 12:54 PM

What size thread does this bulkhead nut run on, and will it work with M22 x 1.5 metric fittings?

Answer by: Customer Support on Jun 15, 2025, 11:52 AM

Female M22 x 1.5 metric thread on the one side, so yes, it'll mate up with compatible M22 x 1.5 metric fittings. The across-flats width is 27mm and the overall length comes in at 8.8mm, so it's a pretty compact piece. Being part of Adaptall's modular system, it's meant to be paired with compatible adapters and bodies to build out the connection you need for your specific setup.
