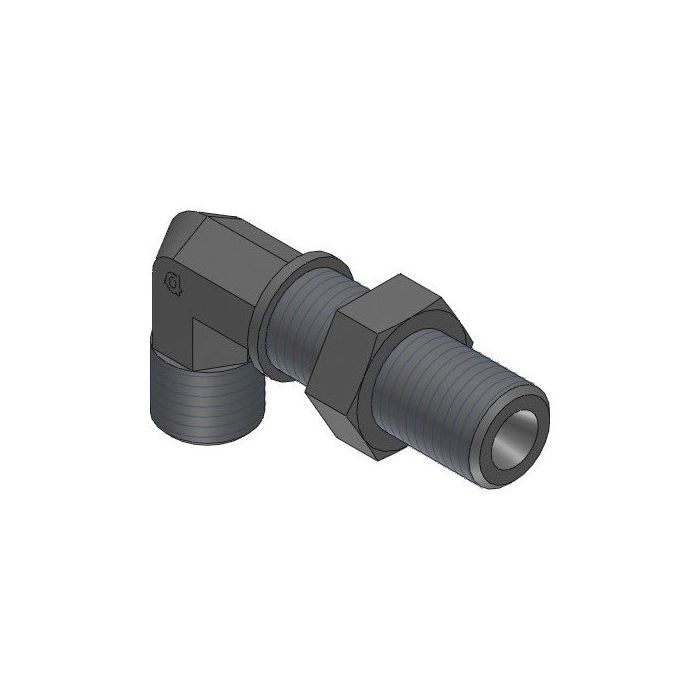

90* Bulkhead Tube Union

Ask A Question

Description & Features

Constructed from durable steel, the 90° Bulkhead Tube Union is engineered for robust and reliable performance in industrial applications. This component features a 90-degree elbow design and is suitable for use with DIN tube systems, offering a seamless connection with M18 x 1.5 male threads on both sides. The dimensions, with a primary length of 57mm and channel widths of 17mm and 24mm, ensure precise fitment in complex hydraulic systems where space is a constraint.

The union's compact design, with lengths of 25mm and 17.5mm, facilitates easy integration into existing setups. Suitable for demanding environments, this bulkhead union is a critical component for maintaining efficient fluid transfer in high-pressure settings. Its adaptability and precision make it ideal for use in a wide range of industrial applications.

SKU: 5042S-10

Supplier Part Number (MPN): 5042S-10

Specifications

Brand
adapt-all
a Dimensions
20 mm
b Dimensions
29.5 mm
Connection Size 2
10 mm
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
17 mm, 24 mm
Material
Steel
Material Construction
Carbon Steel
Series
5042 Series
Thread Size
M18x1.5

Product Questions & Answers (2)

Question by: Diane P on Nov 3, 2025, 2:05 PM
What size tubing does this union work with?
Answer by: Customer Support on Nov 4, 2025, 7:18 PM
It's designed for use with DIN tube systems, specifically size S10, which corresponds to M18 x 1.5 threads on both sides.
Question by: Janice C on Oct 12, 2025, 6:32 AM
trying to swap out a bent fitting, will this work if both sides of my bulkhead are M18 x 1.5 DIN tube?
Answer by: Customer Support on Oct 14, 2025, 6:32 AM
With M18 x 1.5 male threads on both ends and DIN tube on both sides, it matches a DIN tube bulkhead connection where you need the same thread and type on each side, just in a 90 degree elbow.
