90* Bulkhead Tube Union

Ask A Question

Description & Features

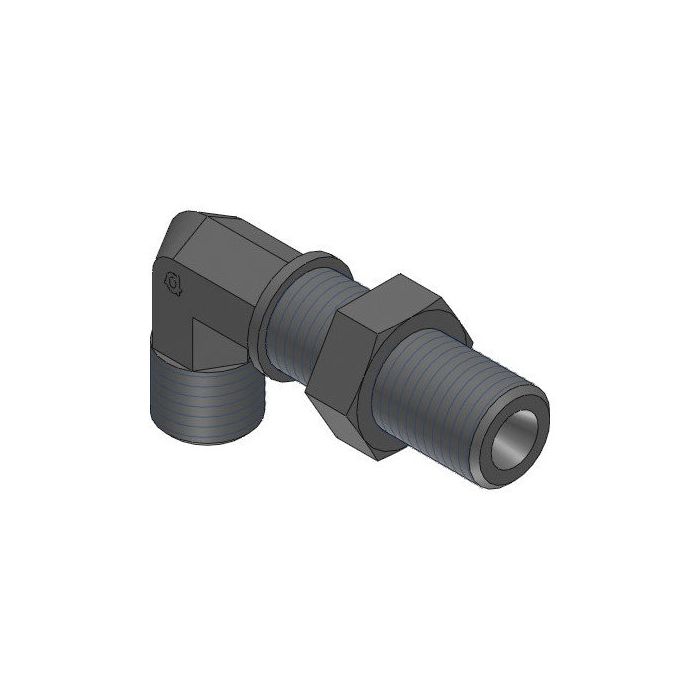

This 90° bulkhead tube union features a steel construction for durability in demanding hydraulic environments. It is designed with a 90-degree elbow shape, providing flexibility in connecting tubes at right angles.

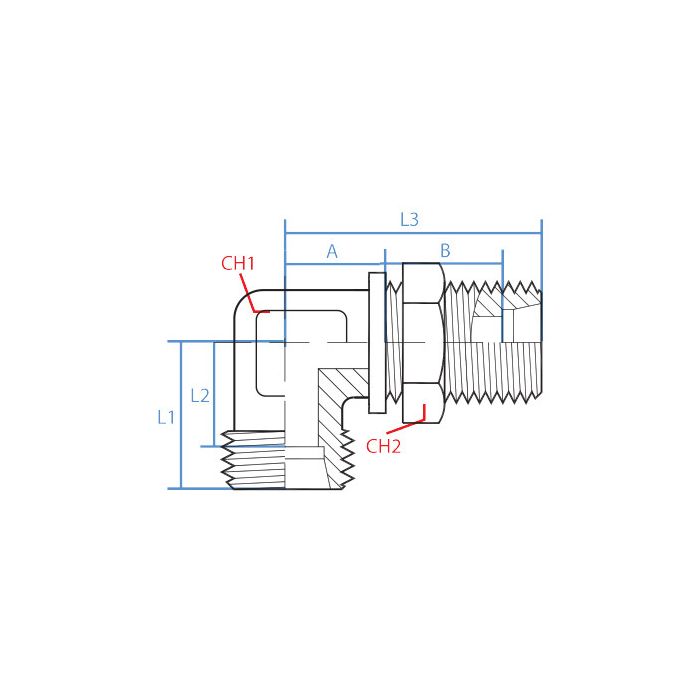

The Adaptall 90* Bulkhead Tube Union is equipped with M24 X 1.5 side 1 and side 2 callouts, both male, and S16 size, making it suitable for DIN tube connections. Adaptall Ch1 Width is 27mm, and Adaptall Ch2 Width is 32mm. The Adaptall L1 Length measures 33mm, while the Adaptall L2 Length is 24.5mm, and the Adaptall L3 Length extends to 64mm.

SKU: 5042S-16

Supplier Part Number (MPN): 5042S-16

Specifications

Brand
adapt-all
a Dimensions
24 mm
b Dimensions
31.5 mm
Connection Size 1
S16
Connection Size 2
S16
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5042 Series
Thread Size
M24x1.5

Product Questions & Answers (2)

Question by: Hubert E on Oct 8, 2025, 8:28 PM
both sides on this thing are M24 x 1.5 male threads, that right? just want to make sure before i order
Answer by: Customer Support on Oct 10, 2025, 3:34 PM
Correct on both counts. Each side carries an M24 x 1.5 male thread in S16 sizing, and both are set up for DIN tube connections. So if your system runs DIN tube on either end of the bulkhead, the threading lines up the same way going in as it does coming out.
Question by: Bonnie D on Sep 16, 2025, 6:32 AM
got a bulkhead pass-through and need to turn 90 degrees right after it. is this the kind of fitting for that
Answer by: Customer Support on Sep 17, 2025, 5:17 PM
For a bulkhead setup where you want an immediate right-angle turn, this is a 90 degree bulkhead tube union, so it passes through a panel and gives you a 90 degree elbow connection on the tube side.
