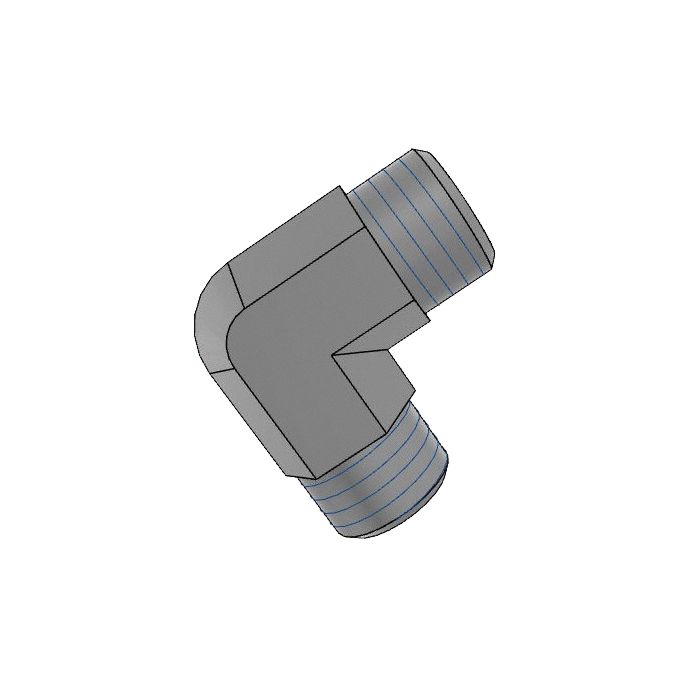

90* Din Union Complete

Description & Features

The 90 Din Union Complete from Adaptall America is engineered from high-quality steel offering robust connections in metric applications. This ADAPTALL AMERICA product delivers reliability and durability ensuring long-term performance.

The union features a 90 elbow shape with M16 X 1.5 Din Tube connections on both sides. The male-to-male configuration seamlessly integrates into various industrial setups.

With precise dimensions the CH width measures 14mm L1 length is 22mm and L2 length is 15mm ensuring compatibility and ease of installation.

This component does not require calibration color coding or additional accessories like check valves or thread sealants simplifying its use in complex systems.

Supplier Part Number: 5055L-10C

Specifications

Brand adapt-all	Connection Size 2 10 mm	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353, ISO 8434-1	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 14 mm	Material Steel	Material Construction Carbon Steel	Series 5055 Series	Thread Size M16x1.5

Product Questions & Answers (1)

Question by: Cindy R on Mar 17, 2026, 5:43 PM

both sides on this fitting are M16 x 1.5 Din Tube, right? just want to make sure before I order

Answer by: Customer Support on Mar 18, 2026, 6:19 PM

Correct on both counts. Each side carries an M16 x 1.5 Din Tube connection, and both are male. So if your system calls for a male-to-male 90-degree elbow in that thread spec, this one lines up without any adapter gymnastics.
