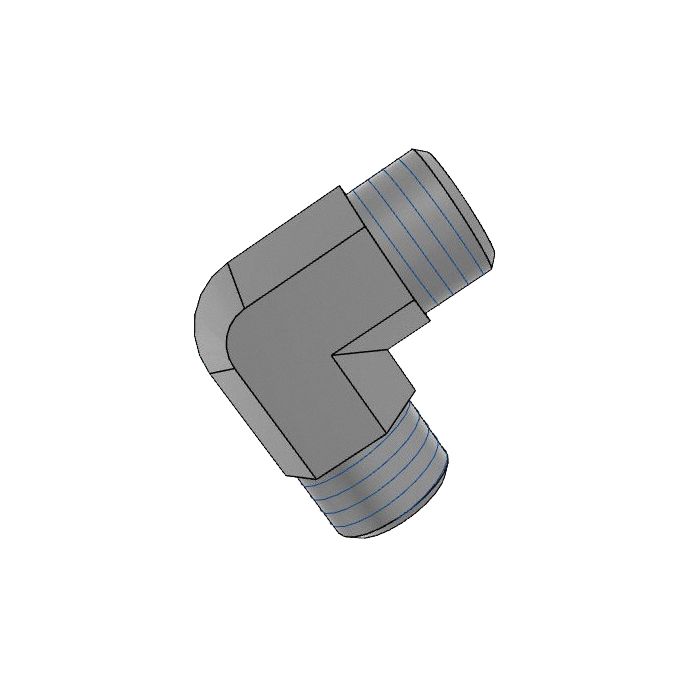

main product photo

90* Din Union Complete

Ask A Question

Description & Features

This 90° elbow DIN union complete features Adaptall steel construction for durability and reliability in hydraulic applications. It is designed with M18 x 1.5 male DIN tube connections on both sides, each with an L12 size and 17mm wrench width.

With L1 lengths of 24mm and L2 lengths of 17mm, this 90* Din Union Complete offers a compact and efficient solution for connecting hydraulic lines at a right angle.

SKU: 5055L-12C

Supplier Part Number (MPN): 5055L-12C

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
12 mm
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
17 mm
Material
Steel
Material Construction
Carbon Steel
Series
5055 Series
Thread Size
M18x1.5

Product Questions & Answers (1)

Question by: Vince H on Nov 1, 2025, 9:46 PM
trying to hook two DIN tube ends around a tight corner, is this the 90 degree union with M18 x 1.5 on both sides?
Answer by: Customer Support on Nov 3, 2025, 7:21 AM
For a right angle connection between two DIN tube ends, this part matches that setup. It is a 90° elbow DIN union complete with M18 x 1.5 male DIN tube connections on both sides, and both ends are size L12.
