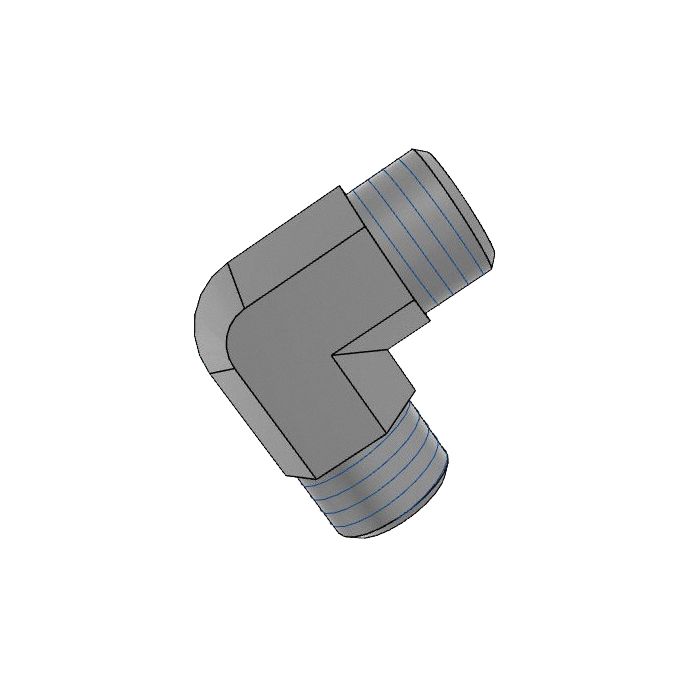

90* Din Union Complete

Description & Features

Manufactured from steel, this 90-degree elbow fitting connects two DIN tube ends in a right-angle configuration, making it well suited for hydraulic line routing where a direction change is required. Both sides carry an M26 x 1.5 male thread at L18 sizing, giving the fitting a symmetrical union-style design across its two ports.

The 90° Din Union Complete is an Adaptall component, built to the dimensional standards associated with that system. With a 24mm across-flat wrench width and overall envelope dimensions of 31mm (L1) by 23.5mm (L2), it fits into space-constrained assemblies where a compact elbow is needed. The all-steel construction provides durability in demanding hydraulic environments.

SKU: 5055L-18C

Supplier Part Number (MPN): 5055L-18C

Specifications

CH Width 24mm	L1 Length 31mm	L2 Length 23.5mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M26 X 1.5	Side 1 Gender M	Side 1 Size L18	Side 1 Type Din Tube	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5055L-18C	Product Weight 0.35 lbs

Product Questions & Answers (1)

Question by: Dean R on Feb 9, 2026, 9:45 PM

So this here fitting is steel, right? Meaning it should hold up okay in a hydraulic system, right?

Answer by: Customer Support on Feb 11, 2026, 8:40 PM

Being made from steel, this fitting provides good durability for demanding hydraulic applications.
