90* Din Union

Description & Features

This steel 90° Elbow Din Tube Union features M36 X 2.0 male threads on both ends, each with a S25 size.

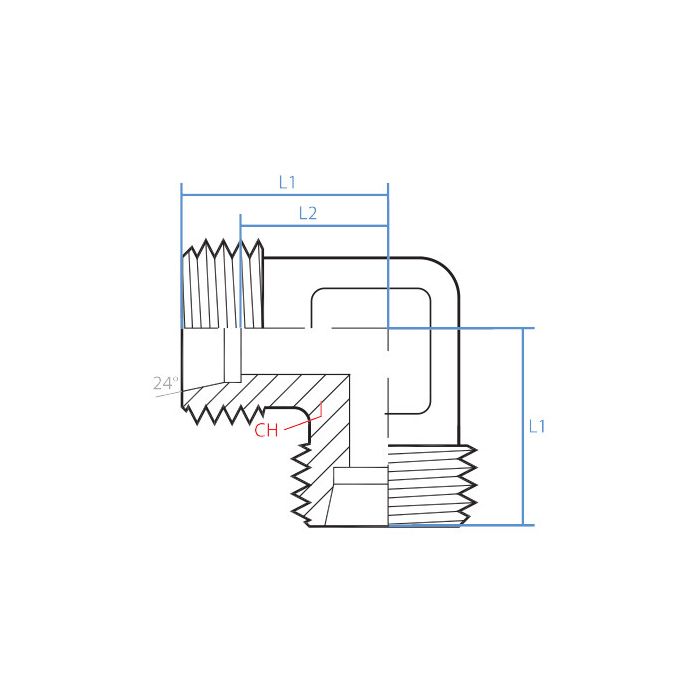

The Adaptall 90* Din Union has a Ch Width of 37mm, an L1 Length of 42mm, and an L2 Length of 30mm.

SKU: 5055S-25

Supplier Part Number (MPN): 5055S-25

CH Width 37mm	L1 Length 42mm	L2 Length 30mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M36 X 2.0	Side 1 Gender M	Side 1 Size S25	Side 1 Type Din Tube	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5055S-25	Product Weight 0.92 lbs

Question by: Glen M on Nov 21, 2025, 5:49 PM

Reckon this'll hold up alright in a hydraulic setup for a log splitter? Just need something sturdy that won't give out on me.

Answer by: Customer Support on Nov 23, 2025, 8:16 AM

This 90° DIN union is made from steel, so it should be plenty durable for that kind of application.

Question by: Cheryl R on May 3, 2025, 7:16 PM

Trying to swap out an elbow union i busted, is this one the kind with M36 x 2.0 male threads on both sides?

Answer by: Customer Support on May 5, 2025, 3:03 PM

Both ends on this 90° DIN tube union are M36 x 2.0 male threads, and each end is size S25.
