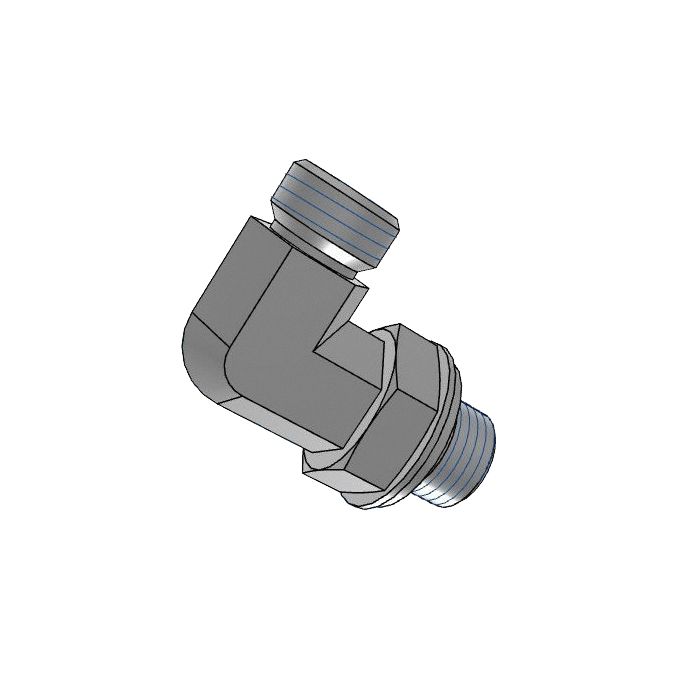

main product photo

90* Din X Mbspp Adj Complete

Ask A Question

Description & Features

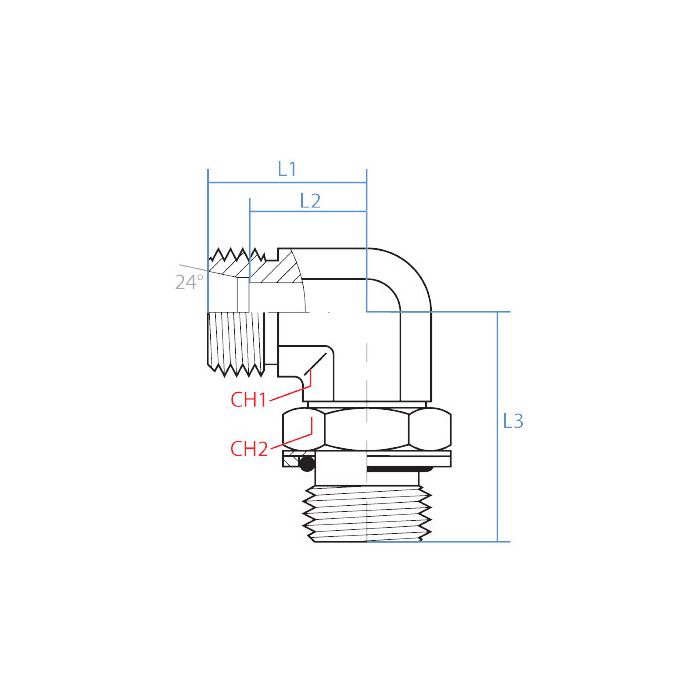

Engineered for robust industrial applications, this 90° elbow adapter combines a Din Tube connection with a Mbspp interface. Crafted from durable steel, it ensures reliable performance in demanding environments. Its compact design features a 14mm Adaptall Ch1 width and a 19mm Adaptall Ch2 width, making it ideal for tight spaces. The adapter offers a precise fit with its M14 X 1.5 threading on Side 1 and G 1/4 - 19 threading on Side 2, both male, allowing for seamless integration into existing hydraulic systems.

With a versatile L08 size on Side 1 and a 1/4" size on Side 2, this component is perfect for connecting various hydraulic lines. The total length dimensions include a 21mm L1 length, a 14mm L2 length, and a 32mm L3 length, ensuring adaptability to different installation requirements. Trust in the Adaptall brand for high-quality fittings that meet the rigorous demands of industrial setups.

SKU: 5059L-08-04C

Supplier Part Number (MPN): 5059L-08-04C

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5059 Series
Thread Size
M14x1.5 x 1/4-19

Product Questions & Answers (3)

Question by: Dustin G on Aug 26, 2025, 8:31 AM
trying to swap out an elbow fitting, how do i know this one’s the right thread on both ends?
Answer by: Customer Support on Aug 28, 2025, 6:23 AM
Match it up to these callouts. Side 1 is a DIN tube connection with M14 x 1.5 male threads in size L08. Side 2 is a BSPP male thread, G 1/4 - 19, listed as 1/4 inch. If your old fitting uses those same thread callouts and end types, it is the same basic connection.
Question by: Dwight G on Jan 17, 2026, 9:14 AM
Hey, will this elbow fitting work alright for hydraulic lines that need a 90-degree turn?
Answer by: Customer Support on Jan 19, 2026, 6:35 AM
This 90° elbow adapter is specifically shaped to provide a reliable connection where you need to change the direction of your hydraulic lines. Its steel construction also ensures durability in demanding industrial environments.
Question by: Brett C on Sep 19, 2025, 6:26 PM
Got a hydraulic line running DIN tube on one end and a BSPP port on the other, this the kind of fitting that bridges those two?
Answer by: Customer Support on Sep 21, 2025, 6:32 AM
Yeah, that's exactly what this one does. One side is a DIN tube connection sized at L08 with M14 x 1.5 male threading, and the other side is a male BSPP port at 1/4 inch with G 1/4-19 threading. The 90 degree elbow shape lets you change flow direction right at the connection point, which comes in handy when you're working with lines that can't run straight into the port.
