90* Din X Mbspp Adj Complete

Description & Features

Designed for seamless integration in industrial hydraulic systems, the 90° Din X Mbspp Adj Complete elbow provides reliable performance with its robust steel construction. This precision-engineered fitting features a 90-degree elbow shape, facilitating efficient fluid flow in compact spaces. The Adaptall Side 1 connection is a male M16 x 1.5 Din Tube, while the Adaptall Side 2 connection is a male G 1/4 - 19 BSPP, accommodating diverse system requirements.

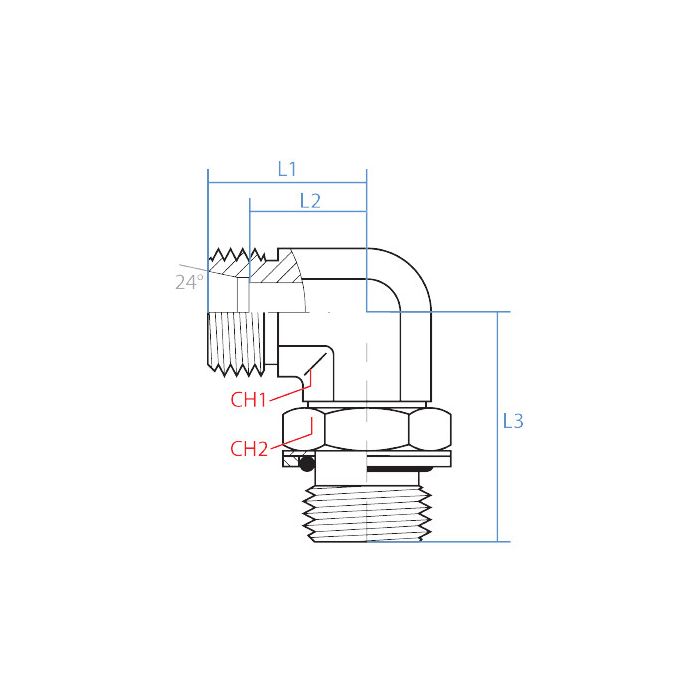

With dimensions including a Ch1 width of 14mm and a Ch2 width of 19mm, this fitting ensures a secure and precise fit. The L1 length of 22mm, L2 length of 15mm, and L3 length of 32mm further contribute to its versatile application in various hydraulic configurations. Engineered by Adaptall, this component exemplifies quality and durability in demanding industrial environments.

SKU: 5059L-10-04C

Supplier Part Number (MPN): 5059L-10-04C

Specifications

CH1 Width 14mm	CH2 Width 19mm	L1 Length 22mm	L2 Length 15mm	L3 Length 32mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5059L-10-04C	Product Weight 0.20 lbs

Product Questions & Answers (2)

Question by: Kurt R on Dec 4, 2025, 8:29 PM

got a tight spot on a hydraulic line, is this the kind of elbow that helps you turn the hose without kinking things up?

Answer by: Customer Support on Dec 6, 2025, 6:21 AM

In cramped layouts, the 90 degree elbow shape is what helps you make the turn cleanly so the line can route through a tighter space. This one is a steel 90 degree elbow with a male M16 x 1.5 DIN tube end on one side and a male G 1/4 - 19 BSPP end on the other.

Question by: Patty W on Mar 28, 2026, 9:06 AM

Hey, will this fitting hold up okay in a hydraulic setup that sees pretty consistent use?

Answer by: Customer Support on Mar 30, 2026, 6:25 AM

Designed for seamless integration in industrial hydraulic systems, this elbow fitting offers reliable performance thanks to its robust steel construction.
