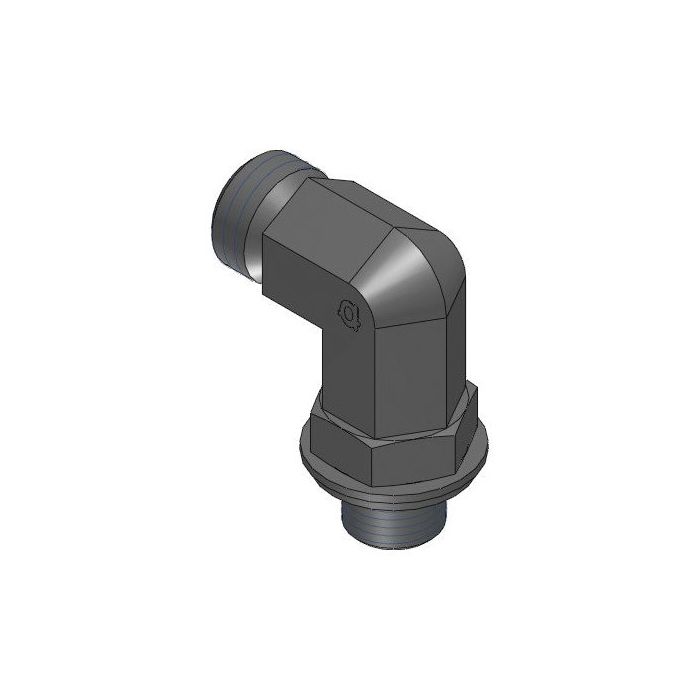

main product photo

90* Din X Male Bspp Adj Elbow

Ask A Question

Description & Features

This steel 90° elbow features a DIN tube connection on Side 1 and a Bspp connection on Side 2. The Adaptall fitting has a Side 1 callout of M18 X 1.5 and a Side 2 callout of G 3/8 - 19.

The Adaptall 90* Din X Male Bspp Adj Elbow has an Adaptall Ch1 width of 19mm, an Adaptall Ch2 width of 24mm, an Adaptall L1 length of 24mm, an Adaptall L2 length of 17mm, and an Adaptall L3 length of 37mm. Side 1 size is L12, while Side 2 size is 3/8".

SKU: 5059L-12-06

Supplier Part Number (MPN): 5059L-12-06

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
3/8 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5059 Series
Thread Size
M18x1.5 x 3/8-19

Product Questions & Answers (2)

Question by: Roy M on Jan 26, 2026, 5:47 PM
Will this fitting work if I need to connect a DIN tube to a BSPP fitting at a 90-degree angle?
Answer by: Customer Support on Jan 28, 2026, 10:55 AM
This 90-degree elbow is specifically designed to connect a DIN tube on one side to a BSPP connection on the other.
Question by: Rusty D on Feb 10, 2026, 10:57 AM
got a tube nut that’s M18 x 1.5 on one side and i need to turn into a 3/8 BSPP male, is this the right elbow?
Answer by: Customer Support on Feb 12, 2026, 9:47 AM
Matches that combo. Side 1 is a DIN tube connection with an M18 x 1.5 callout (size L12), and Side 2 is a male BSPP with a G 3/8 - 19 callout (3/8 inch).
