90* Din X Mbspp Adj Complete

Description & Features

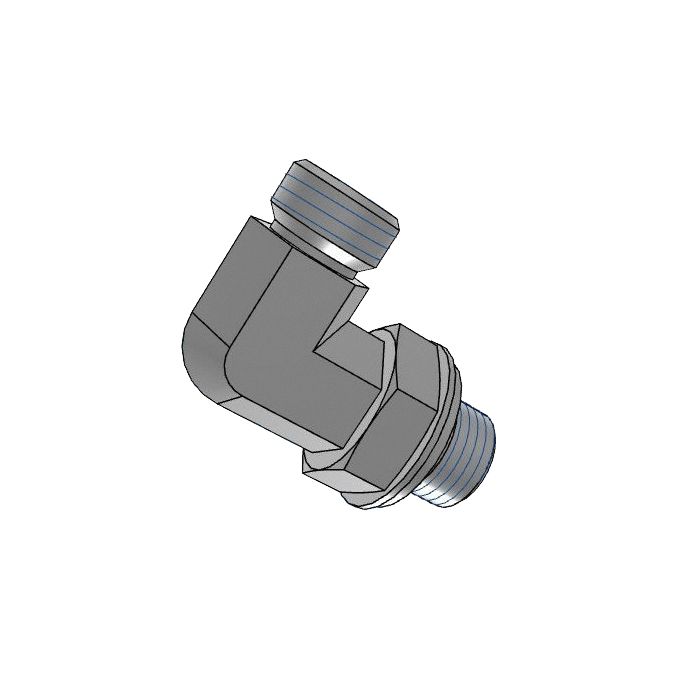

This steel 90° Elbow Adaptall fitting features a DIN Tube Side 1 connection with M18 X 1.5 callout and L12 size. The Bspp Side 2 connection has a G 3/8 - 19 callout and 3/8" size. The 90* Din X Mbspp Adj Complete fitting has a Side 1 width of 19mm and a Side 2 width of 24mm.

Adaptall L1 length is 24mm, L2 length is 17mm, and L3 length is 37mm.

SKU: 5059L-12-06C

Supplier Part Number (MPN): 5059L-12-06C

Specifications

CH1 Width
19mm
CH2 Width
24mm
L1 Length
24mm
L2 Length
17mm
L3 Length
37mm
Adaptall Material
Steel
Adaptall Shape
90° Elbow
Side 1 Callout
M18 X 1.5
Side 1 Gender
M
Side 1 Size
L12
Side 1 Type
Din Tube
Side 2 Callout
G 3/8 - 19
Side 2 Gender
M
Side 2 Size
3/8"
Side 2 Type
Bspp
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
5059L-12-06C
Product Weight
0.22 lbs

Product Questions & Answers (3)

Question by: Dwayne E on Dec 2, 2025, 9:34 AM
What size is this fitting on each end?
Answer by: Customer Support on Dec 3, 2025, 8:52 PM
The DIN Tube side is an M18 X 1.5, which they call a L12 size. The BSPP side is a G 3/8 - 19, or 3/8".
Question by: Lyle W on Jun 12, 2025, 1:30 PM
fitting's got an M18 x 1.5 DIN tube side and I need to hook into a G 3/8 BSPP port, this the right piece for that?
Answer by: Customer Support on Jun 14, 2025, 7:02 AM
That's what this one does. Side 1 is a male DIN tube connection with an M18 x 1.5 thread, sized at L12. Side 2 is a male BSPP connection called out at G 3/8 - 19. So if you've got a DIN tube line coming in and a BSPP port to thread into, this fitting bridges those two standards in a single 90-degree elbow.
Question by: Floyd B on Jan 11, 2026, 7:03 PM
trying to replace an elbow on a din tube line, is this one the M18 x 1.5 (L12) to G 3/8-19 BSPP setup?
Answer by: Customer Support on Jan 13, 2026, 7:29 AM
It matches a DIN tube Side 1 with an M18 x 1.5 callout in size L12, and Side 2 is a male BSPP with a G 3/8 - 19 callout in 3/8 inch size.
