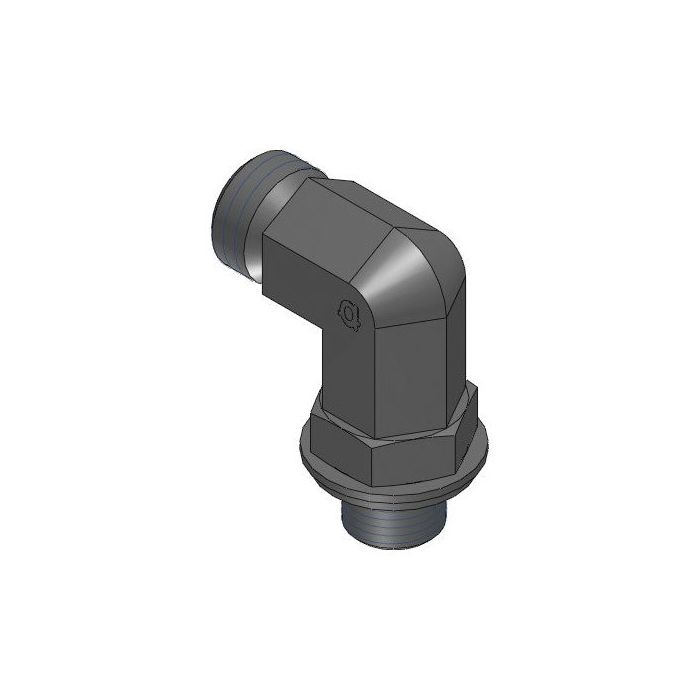

main product photo

90* Din X Male Bspp Adj Elbow

Ask A Question

Description & Features

Constructed from steel, this 90-degree adjustable elbow connects a DIN tube end to a male BSPP port, making it well suited for hydraulic lines where a right-angle transition between these two standards is required. The adjustable design allows the elbow to be oriented as needed during installation, reducing the need for additional fittings in confined routing situations.

The 90* Din X Male Bspp Adj Elbow carries an M22 x 1.5 thread on the DIN side (L15 sizing) and a G 1/2-14 thread on the BSPP side (1/2"). Key dimensional references include a 22mm wrench width on side one, a 27mm wrench width on side two, and overall lengths of 28mm, 21mm, and 43mm across the fitting's principal dimensions. Manufactured by Adaptall, this fitting is compatible with standard DIN and BSPP hydraulic assemblies.

SKU: 5059L-15-08

Supplier Part Number (MPN): 5059L-15-08

Specifications

Brand
adapt-all
Connection Size 1
L15
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5059 Series
Thread Size
M22x1.5 x 1/2-14

Product Questions & Answers (2)

Question by: Glen J on Nov 23, 2025, 1:17 PM
Will this elbow handle the pressures in a typical hydraulic system, or is it more for low-pressure applications?
Answer by: Customer Support on Nov 24, 2025, 6:24 PM
This elbow, made from steel and designed by Adaptall, is compatible with standard DIN and BSPP hydraulic assemblies, so it will work in normal hydraulic applications using those standards.
Question by: Brenda M on Apr 28, 2025, 7:58 PM
Got a tight routing situation on a hydraulic line and need to swing from a DIN tube end over to a BSPP port, this elbow adjustable enough to set the angle where I need it during install?
Answer by: Customer Support on Apr 30, 2025, 1:57 PM
Yeah, the adjustable feature on this fitting lets you rotate and position the elbow before locking it in place, so you can orient it to clear obstructions or match your line routing without having to add extra fittings. That's a real plus when you're working in a cramped space and can't afford a lot of extra hardware in the run.
