90* Din X Mbspp Adj Complete

Ask A Question

Description & Features

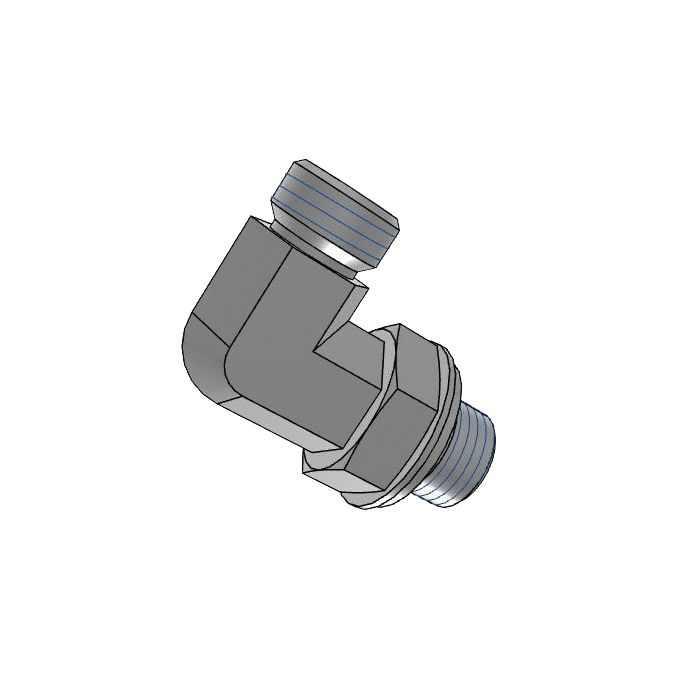

A 90° elbow configuration connects an M22 x 1.5 male DIN tube end (L15 series) to a male G 1/2-14 BSPP thread, making this fitting well suited for routing hydraulic lines at right angles where straight connections are not practical. The adjustable design allows the BSPP outlet to be oriented to the required angle before locking, which simplifies installation in confined or complex manifold layouts.

The 90* Din X Mbspp Adj Complete is manufactured by Adaptall in steel, with a Ch1 wrench width of 22mm and Ch2 of 27mm. Overall assembled dimensions include an L1 of 28mm, L2 of 21mm, and L3 of 43mm, providing a compact profile for space-restricted installations. This fitting is a reliable choice for connecting DIN tube hydraulic circuits to BSPP-ported components such as valves, pumps, and cylinders.

SKU: 5059L-15-08C

Supplier Part Number (MPN): 5059L-15-08C

Specifications

Brand
adapt-all
Connection Size 1
L15
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5059 Series
Thread Size
M22x1.5 x 1/2-14

Product Questions & Answers (1)

Question by: Joyce J on Apr 30, 2025, 7:33 AM
Got a manifold block with a G 1/2 BSPP port that needs to tie into a DIN tube line coming in at a right angle. This fitting gonna work for that?
Answer by: Customer Support on May 1, 2025, 12:08 PM
Yeah, that's exactly the kind of situation this fitting handles. One end is an M22 x 1.5 male DIN tube connection in the L15 series, and the other is a male G 1/2-14 BSPP thread. The 90 degree elbow gets you that right angle change in direction, so you're not fighting a straight fitting into a spot that won't allow it. Steel construction, compact overall length of 43mm on the longest dimension, so it tucks in pretty well on a tight manifold layout.
