90* Din X Mbspp Adj Complete

Ask A Question

Description & Features

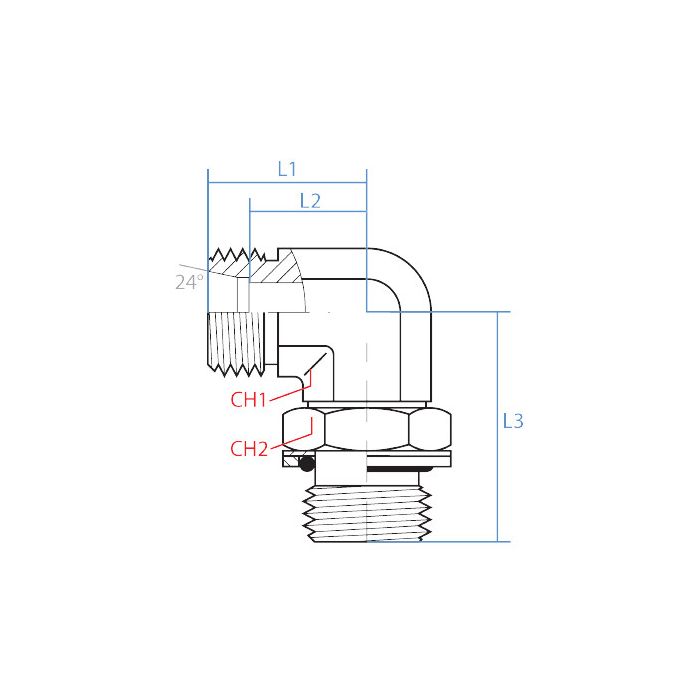

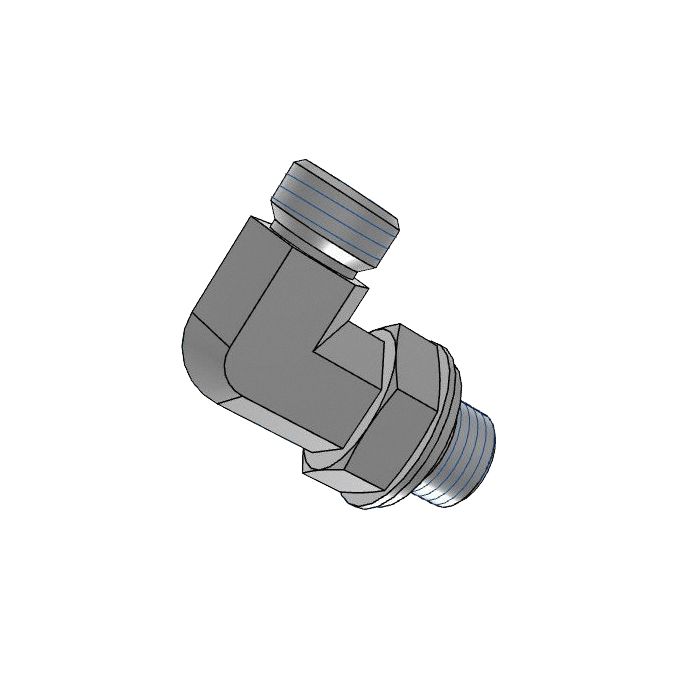

This 90° elbow Adaptall fitting features a DIN tube connection on one end and a Bspp connection on the other. The Din Tube side has a M30 X 2.0 thread and a L22 size, while the Bspp side features a G 3/4 - 14 thread and a 3/4" size. It is constructed of durable steel.

The 90* Din X Mbspp Adj Complete is designed for connecting hydraulic lines at a 90-degree angle. Adaptall Ch1 Width is 27mm and Adaptall Ch2 Width is 36mm.

SKU: 5059L-22-12C

Supplier Part Number (MPN): 5059L-22-12C

Specifications

Brand
adapt-all
Connection Size 1
L22
Connection Size 2
3/4 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5059 Series
Thread Size
M30x2 x 3/4-14

Product Questions & Answers (1)

Question by: Rex M on Sep 24, 2025, 11:08 AM
Got a hydraulic line that needs to turn 90 degrees where a DIN tube meets up with a BSPP port, this the right piece for that?
Answer by: Customer Support on Sep 26, 2025, 7:42 AM
Yeah, that's exactly what this fitting handles. One end is a DIN tube connection with an M30 x 2.0 thread at the L22 size, and the other end is a male BSPP at G 3/4-14, which is a 3/4 inch size. The 90-degree elbow lets you make that directional change right at the connection point without needing extra bends in the line. Both sides are male, so make sure your mating ports are female on each end.
