90* Din X Mbspp Adj Complete

Description & Features

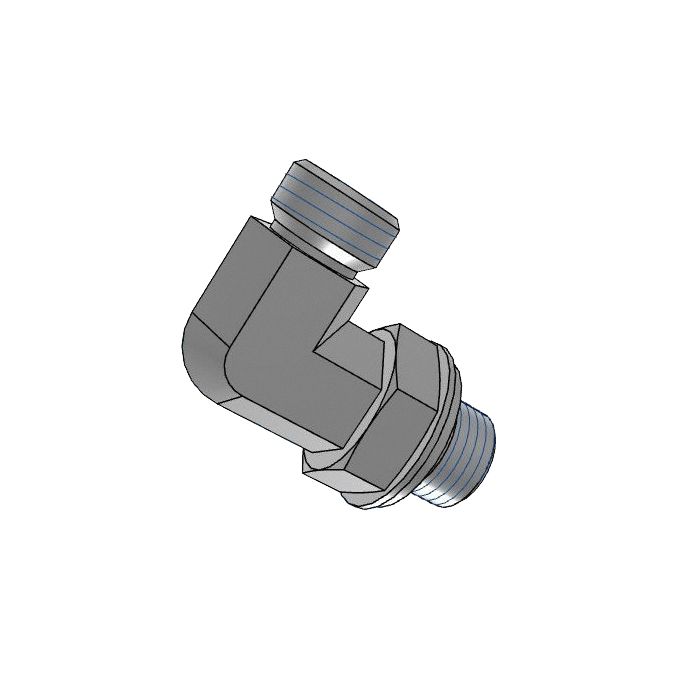

A 90-degree elbow configuration connects a DIN tube end to a male BSPP port, making this Adaptall fitting well suited for hydraulic circuits where directional routing between metric and BSP-threaded connections is required. The DIN side carries an M36 x 2.0 thread at a nominal L28 size, while the BSPP side is a 1-inch male fitting to the G 1 – 11 standard.

The 90° Din X Mbspp Adj Complete is manufactured from steel and features an adjustable design, allowing the elbow orientation to be set during installation. Key dimensions include a 38mm L1 length, 53mm L3 length, and wrench widths of 33mm and 41mm across the two sides. This combination of thread types is commonly used in industrial hydraulic assemblies where equipment with differing port standards must be joined at a right angle.

SKU: 5059L-28-16C

Supplier Part Number (MPN): 5059L-28-16C

Specifications

Brand adapt-all	Connection Size 1 L28	Connection Size 2 1 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male BSPP	Dimension Standards BS 5200, DIN 2353, ISO 1179, ISO 8434-1, ISO 8434-6	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 41 mm, 33 mm	Material Steel	Material Construction Carbon Steel	Series 5059 Series	Thread Size M36x2 x 1-11

Product Questions & Answers (2)

Question by: Cody M on Oct 15, 2025, 11:37 AM

trying to hook a DIN tube end into a 1 inch BSPP port but need a 90, is this the right adapter?

Answer by: Customer Support on Oct 17, 2025, 8:36 AM

For that mix of standards, it matches up. One side is a DIN tube end with an M36 x 2.0 thread in size L28, and the other side is a 1 inch male BSPP to the G 1 - 11 standard, built as a 90 degree elbow.

Question by: Tony H on Apr 21, 2025, 6:15 AM

trying to figure out if this'll work for hooking up a metric DIN tube line into a 1-inch BSP port on a manifold, that the right read on what this fitting does?

Answer by: Customer Support on Apr 23, 2025, 6:12 AM

Right on both counts. One end is a DIN tube connection with an M36 x 2.0 thread at the L28 nominal size, and the other end is a 1-inch male BSPP fitting to the G 1 – 11 standard. So if you've got a metric DIN tube coming off your circuit and need to drop into a BSP-threaded port at a right angle, this is the fitting that bridges that gap.
