90* Din X Male Bspp Adj Elbow

Ask A Question

Description & Features

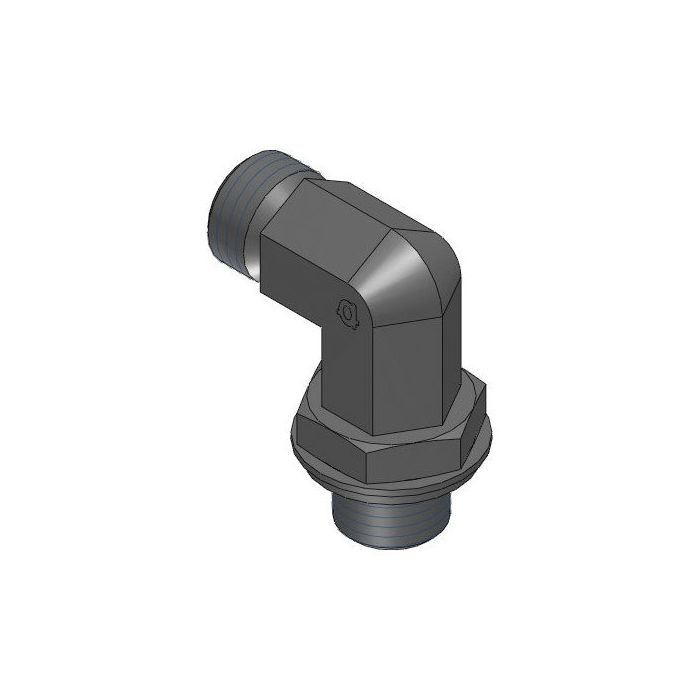

Designed for directional changes in steel hydraulic lines, this 90° Din X Male Bspp Adj Elbow connects an M24 x 1.5 DIN tube end (S16) to a G 1/2-14 male BSPP port. The adjustable elbow configuration allows the outlet angle to be positioned during installation, making it well suited for routing lines in confined or angle-sensitive assemblies.

Manufactured in steel by Adaptall, the fitting measures 33mm along L1, 24.5mm along L2, and 47mm along L3, with 27mm wrench flats on both sides. The 90° elbow shape suits a wide range of hydraulic circuit connections where DIN tube and BSPP threaded ports must be joined with a controlled change of direction.

SKU: 5059S-16-08

Supplier Part Number (MPN): 5059S-16-08

Specifications

Brand
adapt-all
Connection Size 1
S16
Connection Size 2
1/2 in
Connection Type
Male BSP, Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male BSPP
Dimension Standards
BS 5200, DIN 2353
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5059 Series
Thread Size
M24x1.5 x 1/2-14

Product Questions & Answers (2)

Question by: Shawn C on Jul 6, 2025, 5:34 PM
If I'm swapping out an elbow on a hydraulic line, how do I know if this one will fit?
Answer by: Customer Support on Jul 8, 2025, 6:04 AM
This elbow fitting connects an M24 x 1.5 DIN tube end to a G 1/2-14 male BSPP port. If those are the connections you're working with, this should be a direct replacement.
Question by: Connie J on Jul 12, 2025, 8:09 PM
got a hose end thats M24 x 1.5 din (S16). will this elbow screw right into a G 1/2-14 bsp port?
Answer by: Customer Support on Jul 14, 2025, 11:08 AM
It is built to join an M24 x 1.5 DIN tube end (S16) on one side to a G 1/2-14 male BSPP connection on the other, with both ends being male.
