90* Din X Mbspt Elbow Complete

Description & Features

This steel 90° elbow features a DIN tube connection on Side 1 and a Bspt connection on Side 2. Side 1 has a M14 X 1.5 callout and a size of L08. Side 2 has a R 1/4 - 19 callout and a 1/4" size. This 90* Din X Mbspt Elbow Complete offers reliable performance in demanding hydraulic applications.

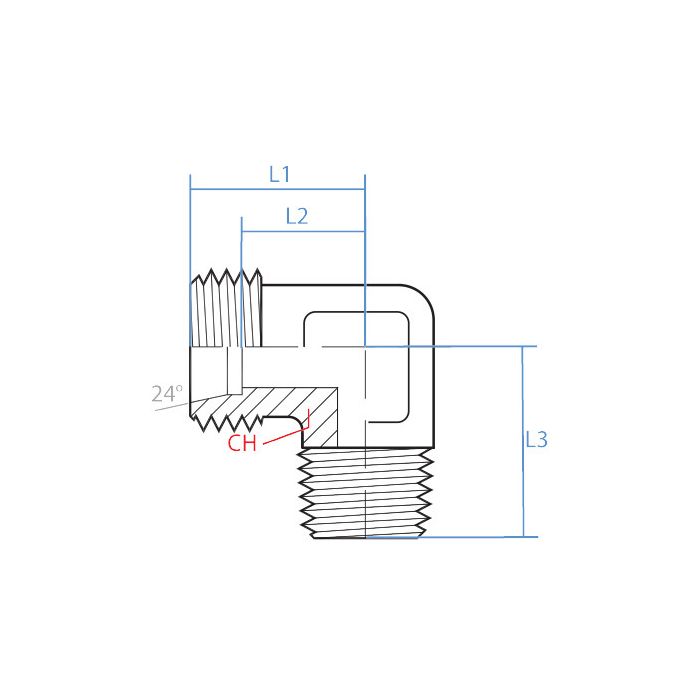

The Adaptall 90° elbow has a channel width of 12mm, an L1 length of 21mm, an L2 length of 14mm, and an L3 length of 26mm.

SKU: 5063L-08-04C

Supplier Part Number (MPN): 5063L-08-04C

Specifications

Connection Size 1 8 mm	Connection Size 2 1/4 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male BSPT	Dimension Standards DIN 2353, DIN EN 10226-1, ISO 7-1, ISO 8434-1	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 12 mm	Material Steel	Material Construction Carbon Steel	Series 5063 Series	Thread Size M14x1.5 x 1/4-19

Product Questions & Answers (1)

Question by: Chad L on Sep 7, 2025, 10:30 AM

trying to swap out an elbow on a line, is this the one with M14 x 1.5 on the DIN tube side and a 1/4 BSPT male on the other end?

Answer by: Customer Support on Sep 8, 2025, 8:01 PM

The connections on this elbow are a male DIN tube end with an M14 x 1.5 callout (Side 1, size L08) and a male BSPT end with an R 1/4 - 19 callout (Side 2, 1/4 inch size).
