90* Din X Mbspt Elbow Complete

Description & Features

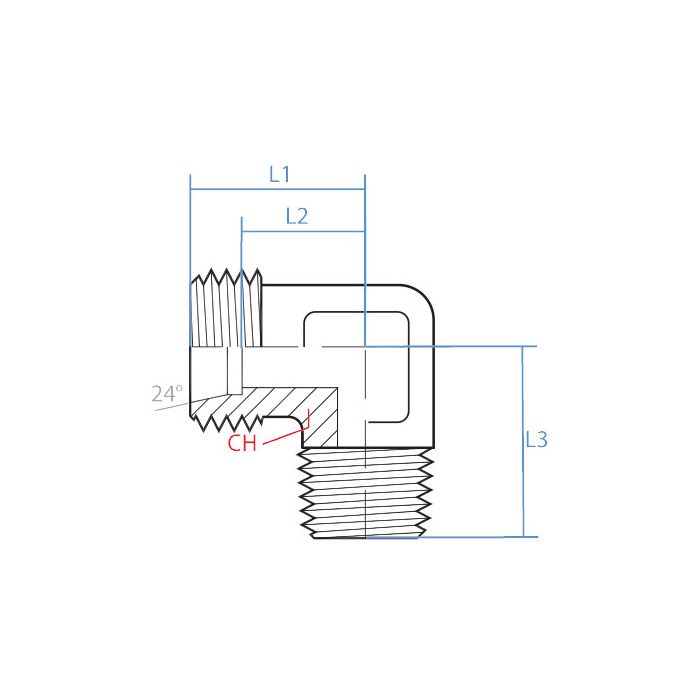

This steel 90° elbow Adaptall fitting features a DIN tube connection on one side and a Bspt connection on the other.

The Adaptall 90* Din X Mbspt Elbow Complete has a M16 X 1.5 DIN tube side 1 with a male gender and L10 size, and a R 1/2 - 14 Bspt side 2 with a male gender and 1/2" size.

SKU: 5063L-10-08C

Supplier Part Number (MPN): 5063L-10-08C

Specifications

Connection Size 2 1/2 in	Connection Type Male BSP, Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male BSPT	Dimension Standards DIN 2353, DIN EN 10226-1, ISO 7-1, ISO 8434-1	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5063 Series	Thread Size M16x1.5 x 1/2-14

Product Questions & Answers (1)

Question by: Randy M on Apr 5, 2026, 7:59 AM

part says DIN tube on one side and BSPT on the other, is that M16 x 1.5 the tube fitting side or the pipe thread side?

Answer by: Customer Support on Apr 6, 2026, 7:06 PM

The M16 x 1.5 callout is the DIN tube side, sized at L10. The BSPT side is the R 1/2-14, which is a half-inch male British Standard Pipe Taper connection. So if you're running a DIN tube line into a BSPT port, this fitting bridges those two standards at a 90-degree angle. Both sides are male on this particular elbow.
