Din X Mmetric Es Seal Complete

Description & Features

A straight steel adapter designed to connect a DIN tube fitting on one end to a metric fitting on the other, the Din X Mmetric Es Seal Complete is a compact, single-piece solution for mixed-standard hydraulic line connections. Side one presents an M12 x 1.5 male DIN tube configuration (L06 size), while side two carries an M10 x 1.0 male metric thread with an ES (elastomeric) seal for reliable, leak-resistant engagement.

Constructed from steel throughout, this straight adapter measures 23.5mm along its primary length, with secondary lengths of 8.5mm and 8mm and a body width of 14mm. The ES seal design on the metric side provides positive face sealing, making it well suited for hydraulic circuits where a secure, vibration-resistant connection between DIN and metric-threaded components is required.

SKU: 5068L-06-10C

Supplier Part Number (MPN): 5068L-06-10C

Specifications

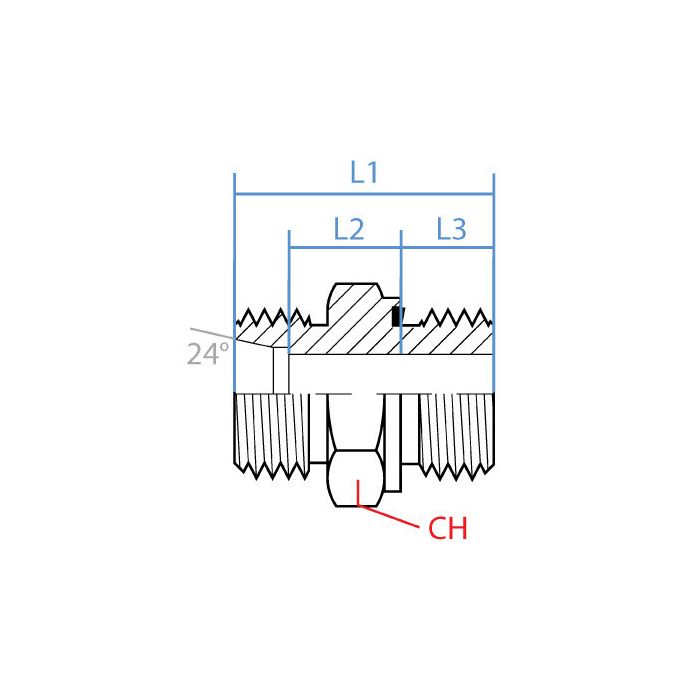

CH Width 14mm	L1 Length 23.5mm	L2 Length 8.5mm	L3 Length 8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-06-10C	Product Weight 0.51 lbs

Product Questions & Answers (1)

Question by: Eddie B on May 26, 2025, 7:42 PM

Got a line running M12 x 1.5 DIN tube on one end and a metric M10 x 1.0 fitting on the other, this adapter bridge that gap in a single piece?

Answer by: Customer Support on May 27, 2025, 8:55 PM

That's what it handles. One side is M12 x 1.5 male DIN tube in an L06 size, and the other carries an M10 x 1.0 male metric thread. Both ends are male, and the whole thing is one straight steel piece, so there's no stacking multiple fittings to make it work.
