Din X Mmetric Es Seal Complete

Description & Features

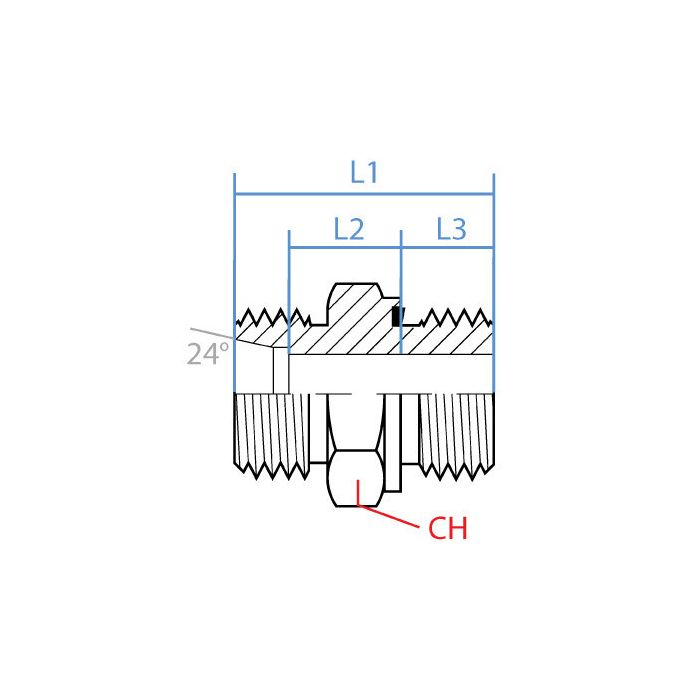

A straight steel adapter designed to connect a DIN tube fitting to a metric port, this Adaptall Din X Metric Es Seal Complete bridges two common hydraulic thread standards in a compact, single-piece configuration. Side one presents a male DIN tube connection with an M14 x 1.5 thread (L08 sizing), while side two terminates in a male metric fitting at M10 x 1.0 (10mm). The straight orientation keeps the connection in-line, suited for installations where a direct transition between these two standards is required without angular offset.

Constructed from steel, this adapter is built for the pressure demands typical of hydraulic circuits and fluid power systems. The Adaptall design follows the brand's established approach to interchangeable, field-configurable hydraulic connections, making it a practical choice when adapting between DIN and metric ported components.

SKU: 5068L-08-10C

Supplier Part Number (MPN): 5068L-08-10C

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-08-10C	Product Weight 0.99 lbs

Product Questions & Answers (3)

Question by: Roy R on Oct 18, 2025, 7:43 AM

trying to hook a DIN tube end to a metric port, is this the right adapter for that?

Answer by: Customer Support on Oct 19, 2025, 8:16 PM

For bridging those two thread styles in a straight, in-line run, it matches a male DIN tube connection on one side and a male metric fitting on the other. Side 1 is M14 x 1.5 in L08 sizing, and side 2 is M10 x 1.0 in 10 mm.

Question by: Lyle B on Jun 8, 2025, 9:07 AM

Will this here adapter work to hook up a DIN fitting to somethin' metric?

Answer by: Customer Support on Jun 10, 2025, 6:44 AM

That's precisely what it's for: connecting a DIN tube fitting to a metric port using a compact, one-piece design.

Question by: Dean K on Jan 12, 2026, 6:45 AM

Got a component with an M10 x 1.0 metric port and need to tie into a DIN tube line running M14 x 1.5, this adapter do that job straight across?

Answer by: Customer Support on Jan 13, 2026, 9:55 AM

Yeah, that's exactly what this one's built for. One end is a male DIN tube connection at M14 x 1.5 (L08 sizing), and the other end is a male metric at M10 x 1.0. Both male threads, straight configuration, so it bridges those two standards in a direct in-line connection without any angular offset. Steel construction, so it'll hold up to the pressure demands you'd expect in a hydraulic circuit.
