Din X Male Metric W/Es Seal

Description & Features

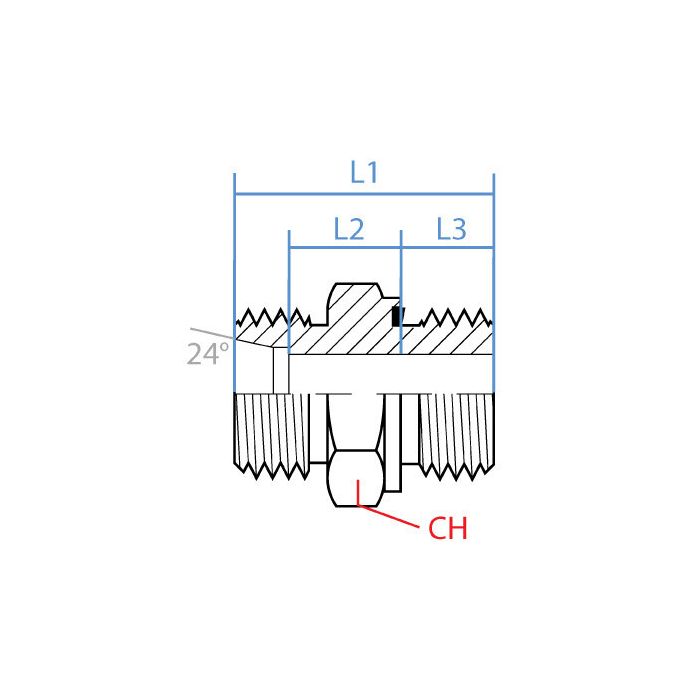

Crafted from durable steel, this Din X Male Metric W/Es Seal ensures reliable performance in hydraulic systems. With a straight shape, it connects two male ends, providing a secure fit for demanding applications. The connection features a Side 1 callout of M16 X 1.5 and a Side 2 callout of M14 X 1.5, making it suitable for various metric fittings. The compact design includes a 19mm wrench width, offering ease of installation in confined spaces. The product's overall length is 30mm, with L1 and L2 lengths of 11mm and 12mm, respectively, ensuring a precise fit for your hydraulic requirements.

SKU: 5068L-10-14

Supplier Part Number (MPN): 5068L-10-14

Specifications

CH Width 19mm	L1 Length 30mm	L2 Length 11mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-10-14	Product Weight 0.07 lbs

Product Questions & Answers (1)

Question by: Glen M on Nov 14, 2025, 6:44 AM

What size wrench do I need for this?

Answer by: Customer Support on Nov 15, 2025, 9:47 PM

This seal takes a 19mm wrench, making installation easier, even in tight spots.
