Din X Mmetric Es Seal Complete

Description & Features

Designed for seamless integration in hydraulic systems, the Din X Mmetric Es Seal Complete offers reliable performance with its robust steel construction. This straight adapter features a male Din Tube connection on Side 1 with an M18 X 1.5 specification, ensuring compatibility with various hydraulic applications. On Side 2, it carries a male Metric connection with an M16 X 1.5 specification, allowing for versatile use across multiple settings.

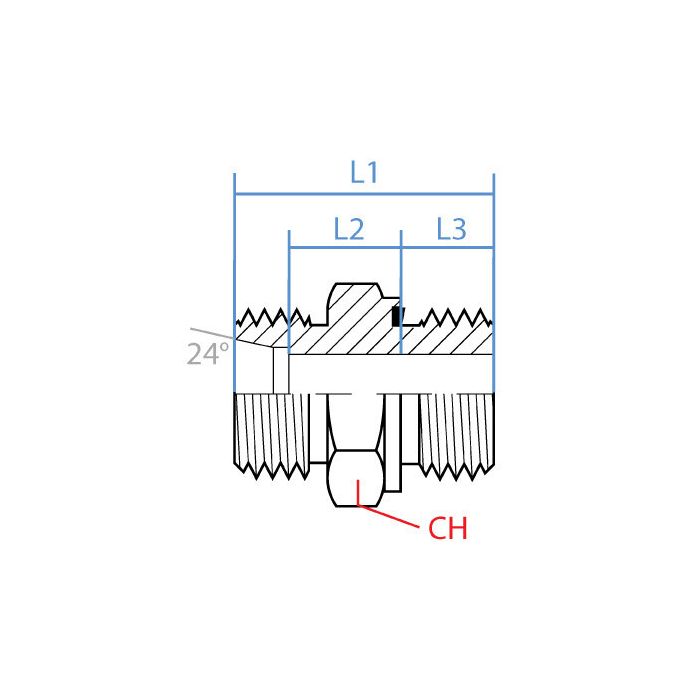

Dimensional attributes include a width of 22mm and lengths of 31.5mm, 12.5mm, and 12mm, providing a compact yet effective solution for hydraulic connections. The product is an ideal choice for those seeking durable and precise coupling components. Manufactured by Adaptall, it maintains high standards of quality and reliability, meeting the demands of complex industrial environments.

SKU: 5068L-12-16C

Supplier Part Number (MPN): 5068L-12-16C

Specifications

CH Width 22mm	L1 Length 31.5mm	L2 Length 12.5mm	L3 Length 12mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5068L-12-16C	Product Weight 0.09 lbs

Product Questions & Answers (3)

Question by: Peggy S on Feb 13, 2026, 5:14 PM

got a hose end that’s M16 x 1.5, will this adapter mate up to it and what’s on the other side?

Answer by: Customer Support on Feb 15, 2026, 9:03 AM

On the metric side, it has a male M16 x 1.5 connection. The opposite end is a male DIN tube connection called out as M18 x 1.5 (Side 1 size L12).

Question by: Daryl W on Jan 19, 2026, 10:02 AM

Will this here fitting work alright for hooking up a M16 X 1.5 port to a DIN tube that's M18 X 1.5?

Answer by: Customer Support on Jan 20, 2026, 11:08 AM

Yes it will. This adapter connects a male DIN tube with M18 X 1.5 threads to a male metric connection that is M16 X 1.5.

Question by: Neal C on Jun 3, 2025, 1:29 PM

Got a line running M18 x 1.5 DIN tube on one end and need to step down to M16 x 1.5 metric on the other, this the right piece for that?

Answer by: Customer Support on Jun 5, 2025, 7:24 AM

That's what this adapter is built for. Side 1 is a male DIN tube connection at M18 x 1.5, and Side 2 is a male metric connection at M16 x 1.5. Both are straight through, no angling, so it drops right in where space is tight. Steel construction means it holds up in working hydraulic environments without a lot of fuss.
