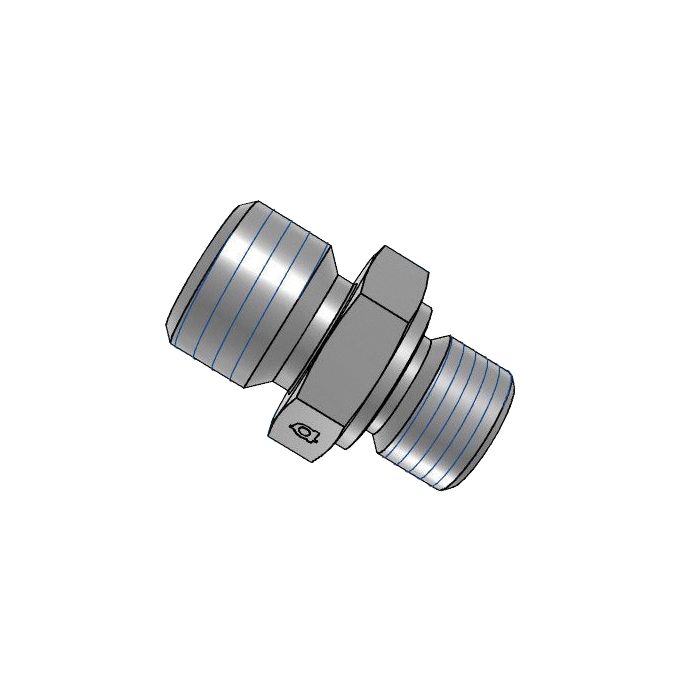

main product photo

Din X Mmetric Es Seal Complete

Ask A Question

Description & Features

This straight steel adapter features a Din tube connection on Side 1 and a Metric connection on Side 2. The Din X Mmetric Es Seal Complete has a Side 1 callout of M26 X 1.5, a Side 1 size of L18, and a Side 1 type of Din Tube.

It also features a Side 2 callout of M22 X 1.5, a Side 2 size of 22mm, and a Side 2 type of Metric. Adaptall Ch Width is 27mm, Adaptall L1 Length is 33.5mm, Adaptall L2 Length is 14.5mm, and Adaptall L3 Length is 12mm.

SKU: 5068L-18-22C

Supplier Part Number (MPN): 5068L-18-22C

Specifications

Brand
adapt-all
Connection Size 1
18 mm
Connection Size 2
22 mm
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric Elastomeric Seal
Dimension Standards
DIN 2353, DIN 7631, ISO 6149, ISO 8434-1, ISO 9974
Dimensions
33.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5068 Series
Thread Size
M26x1.5 x M22x1.5

Product Questions & Answers (2)

Question by: Janet S on Oct 19, 2025, 5:57 PM
got a din tube line with an M26 x 1.5 male end, will this adapter mate up to a metric M22 x 1.5 on the other side?
Answer by: Customer Support on Oct 21, 2025, 2:22 PM
Built for joining a DIN tube connection on Side 1 to a metric threaded connection on Side 2, it has an M26 x 1.5 male DIN tube end (size L18) and an M22 x 1.5 male metric end (22 mm).
Question by: Wayne P on Dec 19, 2025, 8:10 AM
Reckon this here adapter would work alright for connecting a DIN tube to a metric line?
Answer by: Customer Support on Dec 20, 2025, 6:24 PM
Absolutely, that's precisely what it's designed for. This straight steel adapter features a DIN tube connection on one side (M26 X 1.5, L18) and a Metric connection on the other (M22 X 1.5, 22mm).
