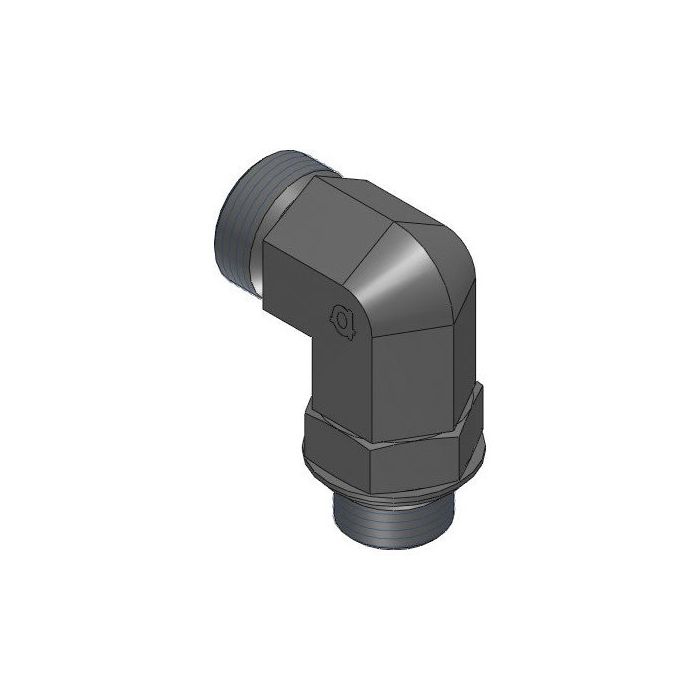

main product photo

90* Din X Male Metric Adj

Ask A Question

Description & Features

This steel 90° elbow Adaptall fitting features a Din tube connection on Side 1 and a male metric connection on Side 2. Side 1 has a M14 X 1.5 callout and L08 size, while Side 2 has a M12 X 1.5 callout and 12mm size. The 90* Din X Male Metric Adj ensures a secure and reliable connection in various hydraulic applications.

The Adaptall Ch1 Width is 12mm, the Adaptall Ch2 Width is 17mm, Adaptall L1 Length is 21mm, Adaptall L2 Length is 14mm, and Adaptall L3 Length is 13.5mm, allowing for precise installation in tight spaces.

SKU: 5069L-08-12

Supplier Part Number (MPN): 5069L-08-12

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
12 mm
Connection Type
Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Male Metric
Dimension Standards
DIN 2353, DIN 7631
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
5069 Series
Thread Size
M14x1.5 x M12x1.5

Product Questions & Answers (3)

Question by: Tammy J on May 6, 2025, 8:16 AM
Will this fitting hold up okay in a hydraulic system on a tractor? Just wanna make sure it's tough enough.
Answer by: Customer Support on May 8, 2025, 6:09 AM
This steel fitting is designed for hydraulic applications, providing a secure and reliable connection where space is tight.
Question by: Terry C on Apr 17, 2025, 11:20 AM
trying to replace a bent elbow fitting, how do i tell if this one matches my threads?
Answer by: Customer Support on Apr 18, 2025, 5:51 PM
Start by matching the thread callouts on both ends. Side 1 is a DIN tube connection with an M14 x 1.5 callout in size L08, and Side 2 is a male metric with an M12 x 1.5 callout in 12 mm size.
Question by: Dean P on Dec 24, 2025, 3:18 PM
What size threads am I working with on each end of this fitting?
Answer by: Customer Support on Dec 25, 2025, 5:55 PM
Side 1 runs M14 X 1.5 and is an L08 DIN tube connection. Side 2 is M12 X 1.5 with a 12mm male metric thread. Both sides are male, so make sure your mating ports are female on each end before ordering.
