90* Din X Male Npt

Description & Features

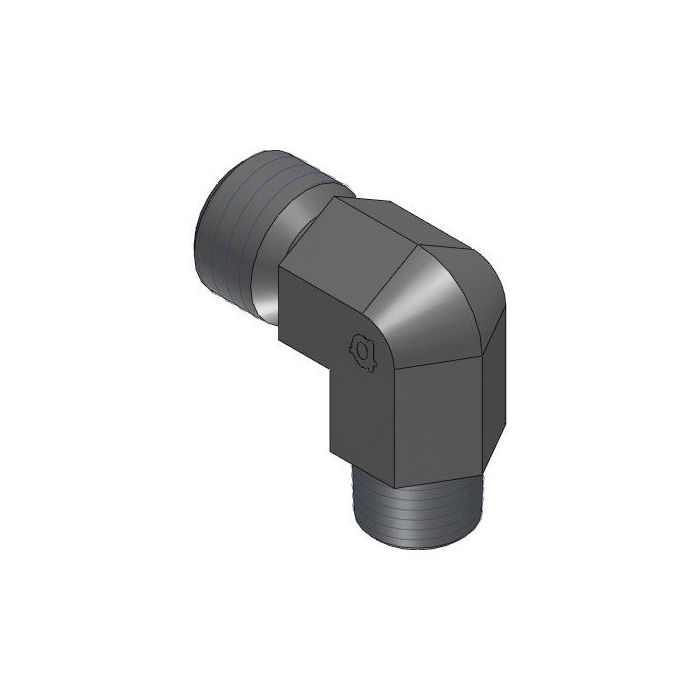

This steel Adaptall 90° elbow features a DIN tube connection on one side and an NPT connection on the other. The 90* Din X Male Npt adapter has a M12 X 1.5 DIN tube side with a L06 size and a 1/8" 1/8 - 27 NPTF male connection.

Dimensions include a 12mm Adaptall Ch Width, 19mm L1 Length, 12mm L2 Length and 20mm L3 Length.

SKU: 5070L-06-02

Supplier Part Number (MPN): 5070L-06-02

Specifications

Brand adapt-all	Connection Size 1 6 mm	Connection Size 2 1/8 in	Connection Type Male Metric, MNPT	Connection Type 1 Male DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 12 mm	Material Steel	Material Construction Carbon Steel	Series 5070 Series	Thread Size M12x1.5 x 1/8-27

Product Questions & Answers (3)

Question by: Frank R on Oct 11, 2025, 1:27 PM

got a DIN tube fitting on a metric line that needs to tie into a 1/8 NPT port, this elbow gonna work for that?

Answer by: Customer Support on Oct 13, 2025, 6:22 AM

That's exactly the use case this piece covers. One end is an M12 x 1.5 DIN tube connection sized at L06, and the other is a 1/8-27 NPTF male thread. The 90-degree angle lets you redirect the line without needing extra fittings in tight spots. Both sides are male, so make sure your mating ports are female before ordering.

Question by: Patty T on Jul 27, 2025, 9:35 PM

Just wanna make sure, this elbow fitting will work to connect a DIN tube to a regular NPT pipe thread, right?

Answer by: Customer Support on Jul 29, 2025, 11:53 AM

That's correct. This 90° elbow adapter features a DIN tube connection on one side and an NPT connection on the other, letting you hook them up.

Question by: Pete P on Aug 18, 2025, 8:31 PM

trying to swap an elbow on a small hydraulic line, is this the one with M12 x 1.5 on the DIN side and 1/8-27 NPTF male on the other?

Answer by: Customer Support on Aug 20, 2025, 6:49 AM

For a fit check, the DIN tube end on this elbow is M12 x 1.5 in size L06, and the other end is a 1/8 inch 1/8-27 NPTF male thread.
