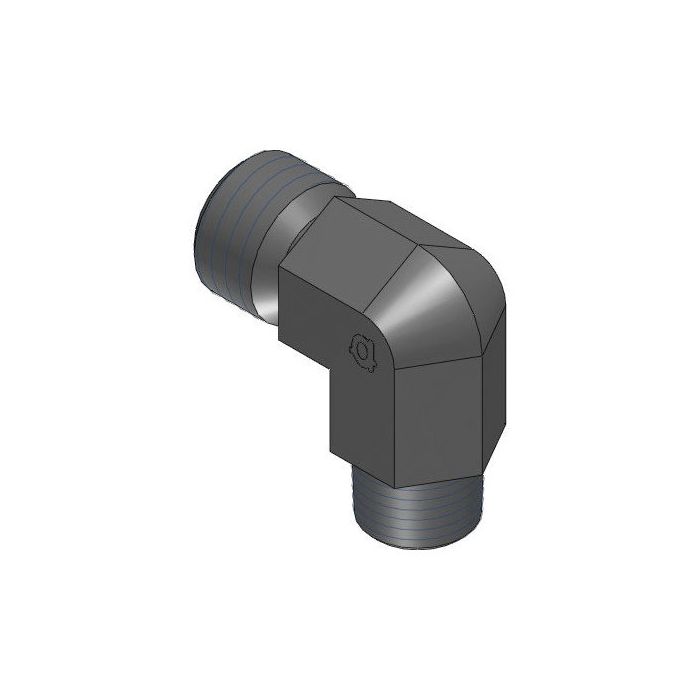

main product photo

90* Din X Male Npt

Ask A Question

Description & Features

Constructed from durable steel, the 90° elbow fitting facilitates reliable connections between hydraulic systems. This component features a Din Tube connection on Side 1 with a thread size of M14 x 1.5 and a Male NPTF connection on Side 2 with a size of 1/4" - 18. Its compact design includes precise dimensions: a channel width of 12mm, L1 length of 21mm, L2 length of 14mm, and L3 length of 26mm, making it ideal for applications that require robust and precise hydraulic connections.

The 90* Din X Male Npt fitting is crafted by Adaptall, a trusted name in the industry, ensuring compatibility and performance in demanding environments. With its 90° angle, this fitting is particularly useful for changing the direction of flow within hydraulic systems, enhancing the system's flexibility without compromising on integrity or performance.

SKU: 5070L-08-04

Supplier Part Number (MPN): 5070L-08-04

Specifications

Brand
adapt-all
Connection Size 1
8 mm
Connection Size 2
1/4 in
Connection Type
Male Metric, MNPT
Connection Type 1
Male DIN Tube
Connection Type 2
Male NPT
Dimension Standards
ANSI B1.20.3, DIN 2353
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
12 mm
Material
Steel
Material Construction
Carbon Steel
Series
5070 Series
Thread Size
1/4-18, M14x1.5

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Sherry P on Oct 7, 2025, 11:10 AM
What's the deal with the angle on this fitting? Does it really make a difference in tight spots?
Answer by: Customer Support on Oct 9, 2025, 6:32 AM
The 90-degree elbow design allows for directional changes in your hydraulic lines without kinking or stressing the hose. It's especially handy when space is at a premium and you need to make a turn.
Question by: Denise T on Sep 8, 2025, 2:31 PM
trying to swap out an elbow on my hydraulic line, is this one the kind with M14 x 1.5 on one side and 1/4-18 NPTF on the other?
Answer by: Customer Support on Sep 10, 2025, 6:49 AM
On the DIN tube side, you get an M14 x 1.5 male connection (Side 1, L08). The other end is a 1/4 inch 18 NPTF male (Side 2). It is a 90 degree elbow, so it turns the line while making that DIN to NPTF transition.
