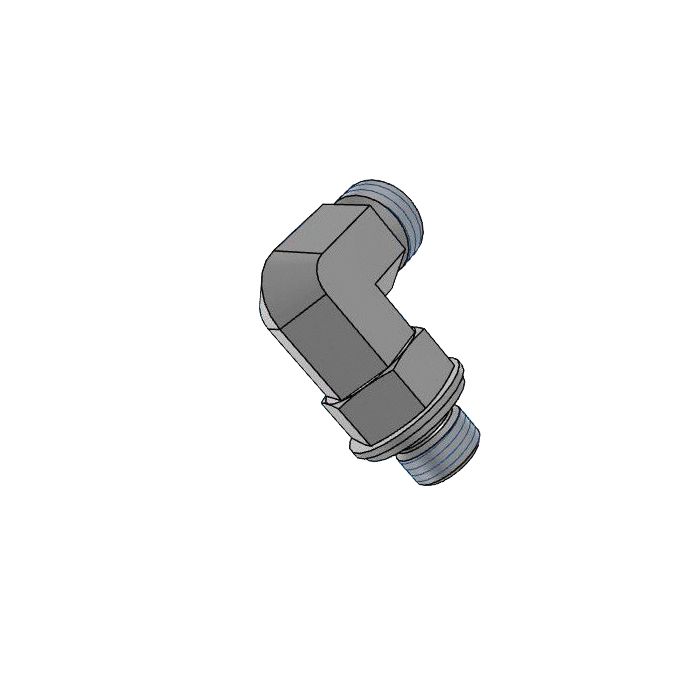

90* Din X Male Npt Complete

Description & Features

This 90° elbow Adaptall fitting features a DIN tube connection on one side and an NPT connection on the other. Specifically, one side features a M16 X 1.5 DIN tube connection with a L10 size, while the opposite side features a 1/4" male NPT connection. This 90* Din X Male Npt Complete is constructed from durable steel, ensuring reliable performance in demanding hydraulic applications.

The Adaptall fitting has a channel width of 14mm. Key dimensions include an L1 length of 22mm, L2 length of 15mm, and L3 length of 27mm.

SKU: 5070L-10-04C

Supplier Part Number (MPN): 5070L-10-04C

Specifications

Brand adapt-all	Connection Size 2 1/4 in	Connection Type Male Metric, MNPT	Connection Type 1 Male DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353, ISO 8434-1	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 14 mm	Material Steel	Material Construction Carbon Steel	Series 5070 Series	Thread Size M16x1.5 x 1/4-18

Product Questions & Answers (1)

Question by: Joyce B on Aug 12, 2025, 6:18 AM

Got a metric DIN tube side and need to tie into a 1/4" NPT port at a right angle, this the fitting that does that?

Answer by: Customer Support on Aug 13, 2025, 8:53 AM

That's what this one's built for. One end is an M16 x 1.5 DIN tube connection sized at L10, and the other is a 1/4" male NPT. The 90-degree elbow lets you make that turn right at the connection point, which saves a lot of grief when you're working in a tight spot and can't run a straight line to the port.
