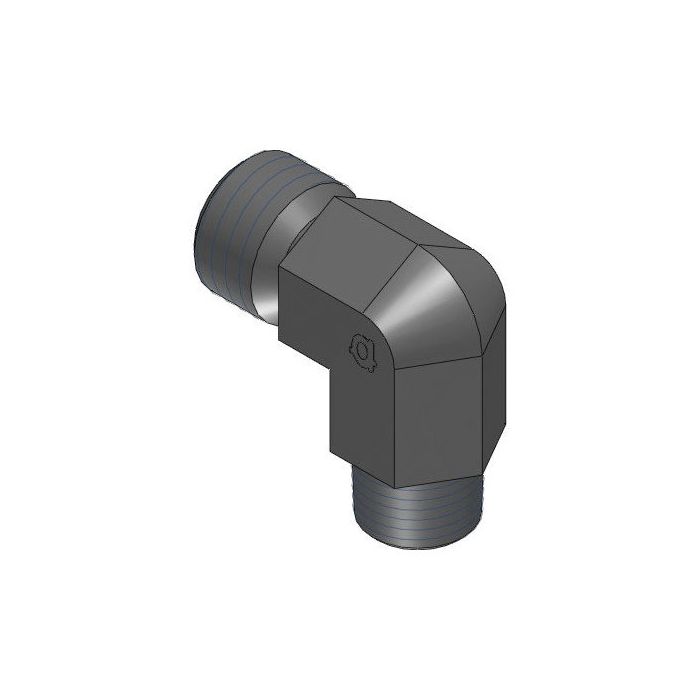

90* Din X Male Npt

Description & Features

Constructed from durable steel, this 90° elbow adapter is designed for reliable performance in hydraulic systems. Featuring a male M18 x 1.5 DIN tube connection on one side and a 1/4-18 NPTF male connection on the other, it provides a seamless interface between different thread types. With precise dimensions, including a 17mm width across flats and length dimensions of L1: 24mm, L2: 17mm, and L3: 28mm, it ensures a secure and optimal fit within your assembly.

Ideal for applications requiring robust and adaptable fittings, this product is part of the trusted Adaptall brand, known for its high-quality hydraulic components. Its versatile design meets the demands of various industrial settings, offering reliable connectivity and ease of installation.

SKU: 5070L-12-04

Supplier Part Number (MPN): 5070L-12-04

Specifications

CH Width 17mm	L1 Length 24mm	L2 Length 17mm	L3 Length 28mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout 1/4 - 18 NPTF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070L-12-04	Product Weight 0.12 lbs

Product Questions & Answers (2)

Question by: Glen B on Aug 2, 2025, 6:51 PM

trying to hook an M18 x 1.5 DIN tube line into a 1/4-18 NPTF port, is this the right elbow for that?

Answer by: Customer Support on Aug 3, 2025, 8:56 PM

For that kind of thread change, it fits the job. One side is a male M18 x 1.5 DIN tube connection and the other side is a male 1/4-18 NPTF, all in a 90 degree elbow body.

Question by: Ross J on May 7, 2025, 6:47 AM

Will this here fitting hold up okay for hydraulic lines on farm equipment?

Answer by: Customer Support on May 8, 2025, 1:13 PM

Constructed from durable steel, this 90° elbow adapter is certainly robust enough to handle the demands of hydraulic systems on farm equipment. It's designed for reliable performance.
