90* Din X Male Npt

Description & Features

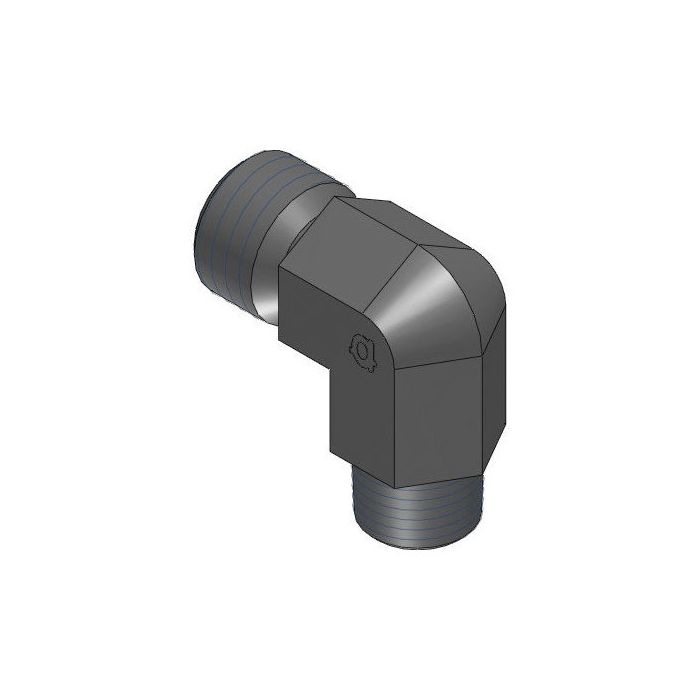

This steel 90° elbow Adaptall fitting features a DIN (Deutsches Institut für Normung) tube connection on one side and an NPT (National Pipe Taper) connection on the other. It adapts from M18 X 1.5 DIN tube (L12) to 3/8" - 18 NPTF.

The 90* Din X Male Npt fitting has a 17mm Adaptall Ch Width, 24mm Adaptall L1 Length, 17mm Adaptall L2 Length, and 28mm Adaptall L3 Length.

SKU: 5070L-12-06

Supplier Part Number (MPN): 5070L-12-06

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Size 2 3/8 in	Connection Type Male Metric, MNPT	Connection Type 1 Male DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 17 mm	Material Steel	Material Construction Carbon Steel	Series 5070 Series	Thread Size M18x1.5 x 3/8-18

Product Questions & Answers (1)

Question by: Joyce R on Sep 7, 2025, 10:31 AM

fitting goes from DIN tube to NPT -- is that male on both ends or just one side?

Answer by: Customer Support on Sep 8, 2025, 1:31 PM

Both connections on this fitting are male. The DIN tube side is a male M18 x 1.5 thread, and the NPT side is a male 3/8"-18 NPTF thread. So you'd need female receivers on both ends of whatever you're connecting it to.
