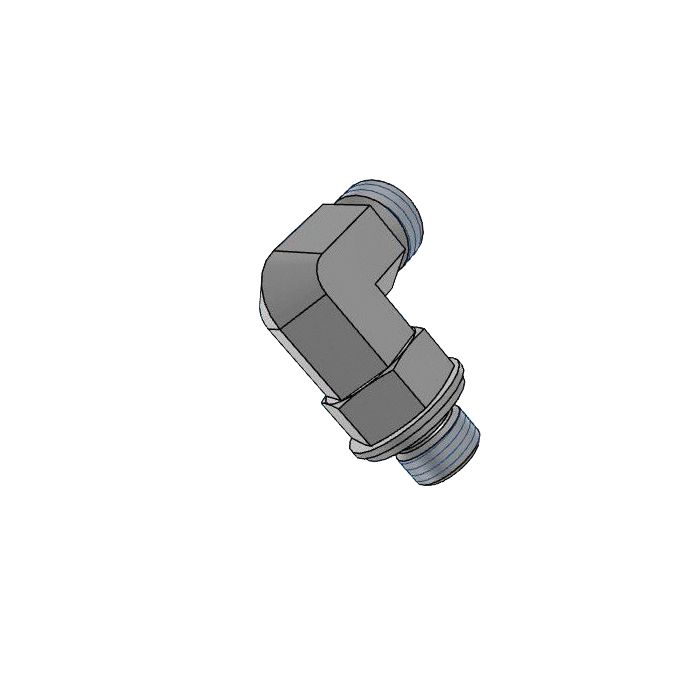

90* Din X Male Npt Complete

A 90-degree elbow configuration makes this Adaptall fitting well-suited for routing hydraulic lines in confined or angle-constrained installations. The 90° Din X Male Npt Complete connects an M18 x 1.5 DIN tube port on one end to a 3/8"-18 NPTF male thread on the other, bridging metric DIN and inch NPT hydraulic circuits in a single compact adapter.

Constructed from steel, the fitting features an L12 DIN side and a 3/8" NPT side, with a CH width of 17mm for standard wrench engagement. Key dimensional references include an L1 length of 24mm, L2 of 17mm, and L3 of 28mm. The two-piece Adaptall design allows the DIN end to be assembled to the body separately, offering flexibility when routing hose assemblies.

SKU: 5070L-12-06C

Supplier Part Number (MPN): 5070L-12-06C

Alternate Part Numbers: MC6071-L12-06
