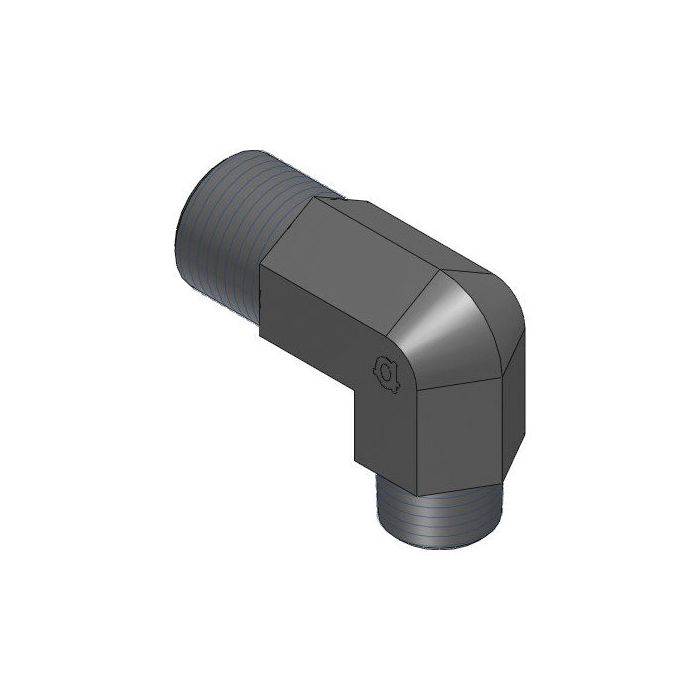

90* Din X Male Npt Complete

Description & Features

This straight Adaptall fitting features a 90-degree DIN to male NPT connection. The side 1 connection is a M12 x 1.5 DIN tube with a L06 size. Side 2 features a 1/4" male NPT connection with a 1/4 - 18 NPTF callout. This 90* Din X Male Npt Complete fitting ensures a reliable connection in hydraulic applications.

The Adaptall Ch Width is 17mm, Adaptall L1 Length is 30mm, Adaptall L2 Length is 8mm, and Adaptall L3 Length is 15mm.

SKU: 5070LL-06-02C

Supplier Part Number (MPN): 5070LL-06-02C

Specifications

Brand adapt-all	Connection Size 1 LL06	Connection Size 2 1/8 in	Connection Type Male Metric, MNPT	Connection Type 1 Male DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 17 mm	Material Steel	Material Construction Carbon Steel	Series 5070 Series	Thread Size 1/8-27 x M10x1

Product Questions & Answers (3)

Question by: Peggy T on Jul 21, 2025, 2:24 PM

trying to swap a line over, is this the 90 degree adapter that goes from M12 x 1.5 DIN tube (L06) to a 1/4 male NPT?

Answer by: Customer Support on Jul 23, 2025, 12:40 PM

For that combo, yes. Side 1 is a M12 x 1.5 DIN tube connection in size L06, and side 2 is a 1/4 inch male NPT with a 1/4 - 18 NPTF callout, built into a 90 degree fitting.

Question by: Shawn E on Jun 13, 2025, 12:40 PM

Got a metric DIN tube line on one side and need to tie into a 1/4" NPT port on the other end. This fitting gonna work for that?

Answer by: Customer Support on Jun 15, 2025, 7:30 AM

That's what this one's built for. Side one is an M12 x 1.5 DIN tube connection at an L06 size, and side two is a 1/4" male NPT with a 1/4-18 NPTF callout. So if you've got a metric DIN tube coming in and a standard NPT port to thread into, this fitting bridges that gap without any adapter stacking.

Question by: Merle B on Sep 17, 2025, 4:08 PM

What size is the DIN tube connection on this fitting?

Answer by: Customer Support on Sep 19, 2025, 12:33 PM

This fitting uses a M12 x 1.5 DIN tube connection, which is an L06 size.
