90* Din X Male Npt

Description & Features

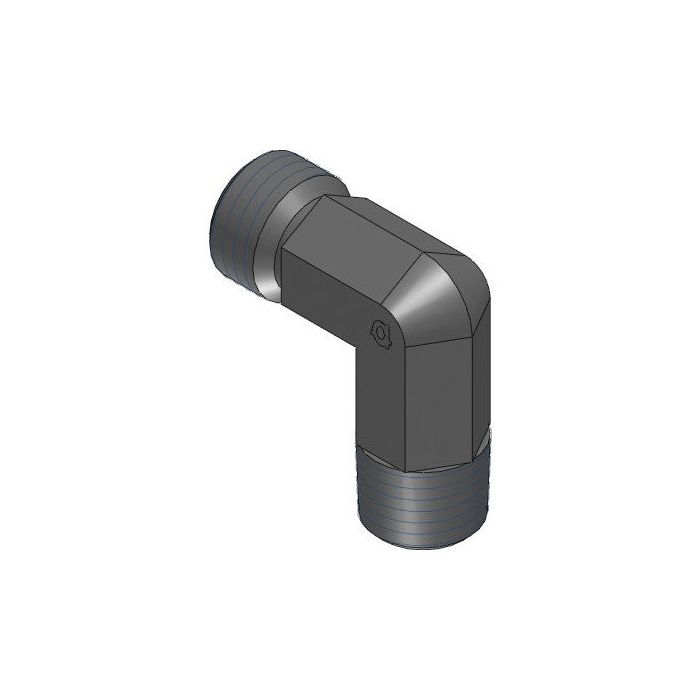

This 90° elbow Adaptall fitting features a DIN tube connection on one side and an NPT connection on the other. The DIN side has a M18 X 1.5 callout and S10 size, while the NPT side features a 3/8" - 18 NPTF callout and 3/8" size. It is constructed of durable steel for reliable performance in demanding hydraulic applications.

The 90* Din X Male Npt has an Adaptall Ch Width of 17mm, Adaptall L1 Length of 25mm, Adaptall L2 Length of 17.5mm and Adaptall L3 Length of 28mm.

SKU: 5070S-10-06

Supplier Part Number (MPN): 5070S-10-06

Specifications

Brand adapt-all	Connection Size 2 3/8 in	Connection Type Male Metric, MNPT	Connection Type 1 Male DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 17 mm	Material Steel	Material Construction Carbon Steel	Series 5070 Series	Thread Size M18x1.5 x 3/8-18

Product Questions & Answers (3)

Question by: Travis A on Feb 4, 2026, 2:03 PM

fitting's got a DIN tube side and an NPT side both male? just want to make sure I ain't misreading the specs before I order

Answer by: Customer Support on Feb 5, 2026, 9:49 PM

Both sides are male, yes. The DIN tube end carries an M18 x 1.5 thread and an S10 size designation, while the NPT end is a 3/8 inch male with an 18-thread NPTF callout. So if your setup needs a male connection at both ends, this one covers it.

Question by: Denise S on Jun 18, 2025, 1:44 PM

trying to swap out an elbow fitting i’ve got now, is this one the M18 x 1.5 din tube to 3/8-18 nptf male?

Answer by: Customer Support on Jun 19, 2025, 2:45 PM

You’ve got it. One end is a DIN tube connection with an M18 x 1.5 male (S10 size), and the other end is a male 3/8 inch 3/8-18 NPTF connection.

Question by: Billy A on May 12, 2025, 7:46 PM

What size is that DIN tube side, if you don't mind me asking?

Answer by: Customer Support on May 14, 2025, 8:45 AM

The DIN tube connection has an M18 X 1.5 callout and an S10 size.
