90* Din X Male Npt

Description & Features

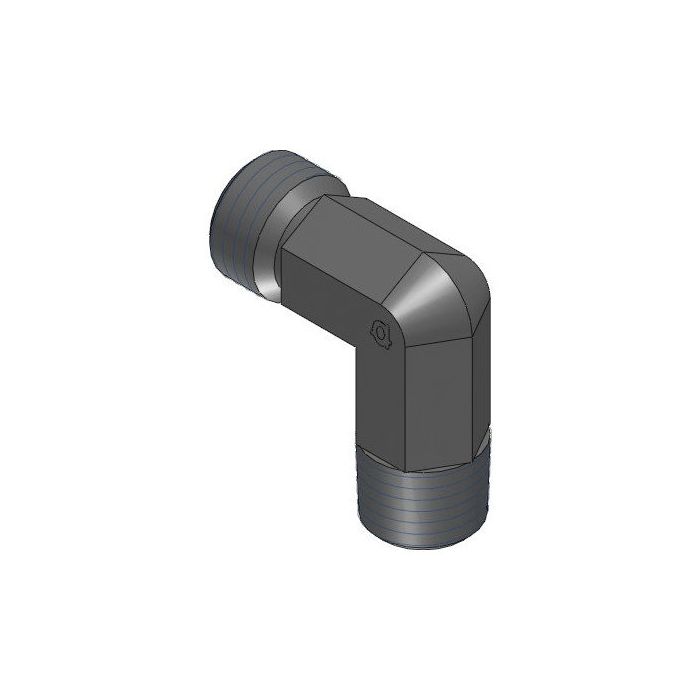

This steel 90° elbow Adaptall fitting features a DIN tube connection on one side and an NPT connection on the other. Specifically, it adapts a M20 X 1.5 DIN tube to a 3/8 - 18 NPTF male thread.

The 90* Din X Male Npt fitting has a 17mm Adaptall Ch Width. Adaptall L1 Length is 29mm, Adaptall L2 Length is 21.5mm, and Adaptall L3 Length is 28mm.

SKU: 5070S-12-06

Supplier Part Number (MPN): 5070S-12-06

Specifications

Brand adapt-all	Connection Size 1 L12	Connection Size 2 3/8 in	Connection Type Male Metric, MNPT	Connection Type 1 Male DIN Tube	Connection Type 2 Male NPT	Dimension Standards ANSI B1.20.3, DIN 2353	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 5070 Series	Thread Size M20x1.5 x 3/8-18

Product Questions & Answers (3)

Question by: Randy E on Apr 16, 2025, 3:47 PM

Is this fitting steel all the way through?

Answer by: Customer Support on Apr 17, 2025, 6:00 PM

Yes, this Adaptall fitting is made entirely of steel.

Question by: Pete H on Jun 4, 2025, 2:38 PM

trying to hook up a M20 x 1.5 DIN tube to a 3/8-18 NPTF port, is this the right elbow?

Answer by: Customer Support on Jun 5, 2025, 3:11 PM

For that exact combo, yes. One end is a male M20 x 1.5 DIN tube connection (Side 1, S12) and the other end is a male 3/8 - 18 NPTF thread (Side 2), built as a 90 degree elbow.

Question by: Frank B on May 20, 2025, 7:04 AM

Got a DIN tube line running M20 x 1.5 that needs to tie into a 3/8 NPT port at a right angle, this the fitting that'd handle that?

Answer by: Customer Support on May 21, 2025, 1:06 PM

That's what this one's built for. One end connects to an M20 x 1.5 DIN tube, the other side is a 3/8-18 NPTF male thread, and the whole thing bends at 90 degrees. Steel construction, so it holds up well in working hydraulic environments. The 17mm wrench width gives you a decent grip during installation without needing anything oversized.
