90* Din X Male Npt Complete

Description & Features

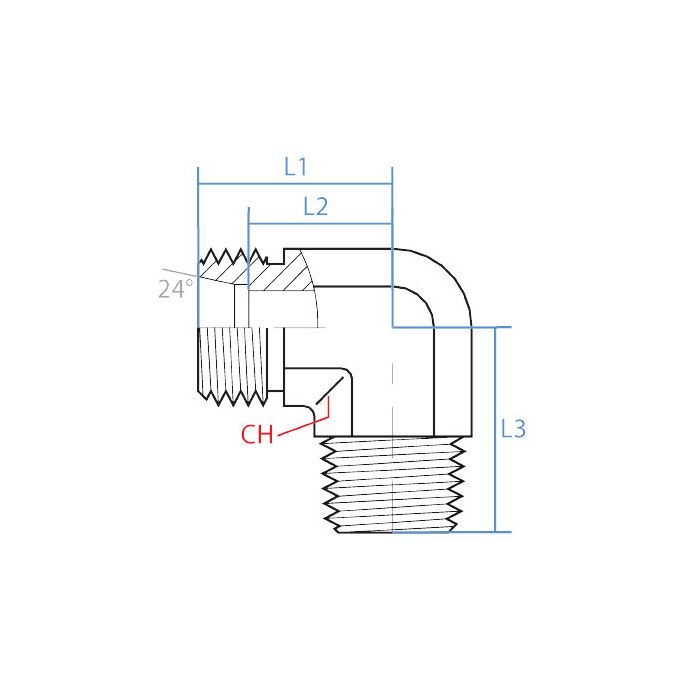

Constructed from durable steel, the 90° Elbow Adapter offers a versatile connection solution for hydraulic systems requiring a reliable transition between DIN and NPT threads. This adapter features a robust M30 x 2.0 DIN male tube on one side and a 1/2"-14 NPTF male thread on the other, ensuring compatibility with a wide range of industrial applications. Designed by Adaptall, this fitting is ideal for use in high-pressure environments where secure and leak-free connections are essential.

The 90* Din X Male Npt Complete is engineered to facilitate seamless integration in complex hydraulic systems, thanks to its precision machining and quality construction. The adapter's 90° elbow shape provides directional flexibility, allowing for efficient routing and space-saving configurations. Whether used in manufacturing, construction, or heavy machinery, this fitting is an integral component for maintaining system integrity and performance.

SKU: 5070S-20-08C

Supplier Part Number (MPN): 5070S-20-08C

Specifications

Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size S20	Side 1 Type Din Tube	Side 2 Callout 1/2 - 14 NPTF	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5070S-20-08C	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Billy H on Oct 28, 2025, 7:03 PM

got a tight spot on a machine, will this elbow let me turn from DIN over to 1/2 npt without stacking extra fittings?

Answer by: Customer Support on Oct 30, 2025, 8:54 AM

With the 90 degree elbow shape, it’s meant for exactly that kind of routing. One end is an M30 x 2.0 DIN male tube connection (S20) and the other end is a 1/2 inch 14 NPTF male thread, so it makes the DIN to NPT transition in a single fitting.
