90*Din X Msae Orb Adj Complete

Description & Features

This 90° elbow Adaptall fitting features a DIN tube connection on one side and an Orb-Sae connection on the other, making it suitable for diverse connection requirements. Constructed from durable steel, this 90*Din X Msae Orb Adj Complete fitting ensures reliable performance in demanding applications.

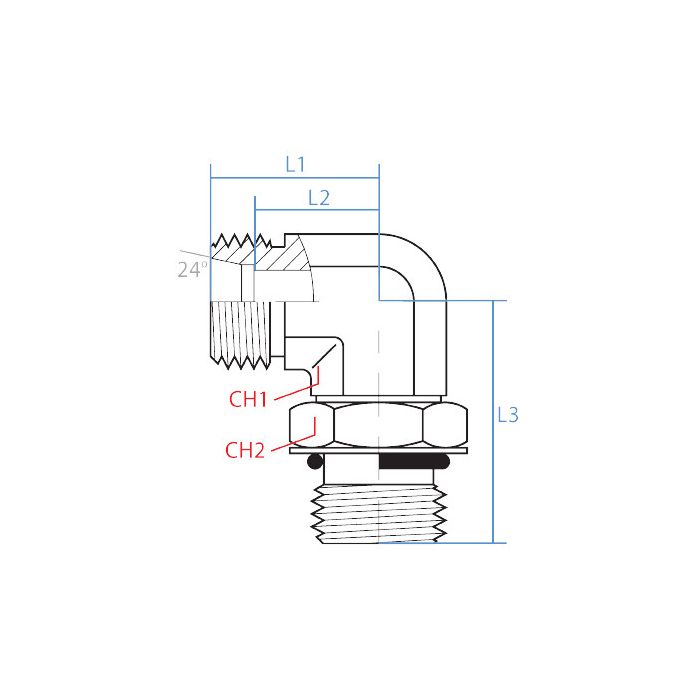

The Adaptall fitting features a M14 X 1.5 Side 1 callout with a male gender and L08 Side 1 size, coupled with a 7/16 - 20 UNF Side 2 callout with a male gender and 1/4" Side 2 size. The Ch1 width is 12mm and the Ch2 width is 14mm. The L1 length is 21mm, the L2 length is 14mm, and the L3 length is 27mm.

SKU: 5077L-08-04C

Supplier Part Number (MPN): 5077L-08-04C

Specifications

Connection Size 1 8 mm	Connection Size 2 1/4 in	Connection Type Male Metric, Male SAE ORB	Connection Type 1 Male DIN Tube	Connection Type 2 Male SAE ORB	Dimension Standards DIN 2353, ISO 11926, ISO 8434-1, SAE J1926	Dimensions 21 mm L	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 5077 Series	Thread Size M14x1.5 x 7/16-20

Product Questions & Answers (3)

Question by: Vince B on Dec 29, 2025, 8:47 AM

got a tight spot on a line, is this a 90 elbow that goes from M14 x 1.5 DIN tube to a 7/16-20 ORB?

Answer by: Customer Support on Dec 31, 2025, 6:39 AM

For a right angle connection, it matches that combo. Side 1 is a DIN tube male M14 x 1.5 (L08), and side 2 is a male ORB-SAE 7/16 - 20 UNF in 1/4 inch size.

Question by: Keith C on Mar 20, 2026, 10:58 AM

Reckon this fitting can handle some vibration in its regular use?

Answer by: Customer Support on Mar 22, 2026, 6:28 AM

The steel construction should hold up well under normal vibration conditions, but it's always a good idea to double-check connections periodically, especially in demanding applications.

Question by: Rod A on Sep 7, 2025, 8:39 PM

fitting's got a DIN tube side and an ORB-SAE side both male -- is that right for connecting into a standard 1/4" SAE port on a hydraulic block?

Answer by: Customer Support on Sep 9, 2025, 1:58 PM

Both sides are male, yes. The DIN tube end is M14 x 1.5 and the ORB-SAE end is a 7/16-20 UNF thread sized for a 1/4" port. So if your block has a 1/4" SAE O-ring boss port, the thread callout lines up correctly on that side.
