90*Din X Msae Orb Adj Complete

Description & Features

This 90° elbow Adaptall fitting features a DIN tube connection on one side and an ORB-SAE connection on the other. The 90*Din X Msae Orb Adj Complete adapter is constructed of steel for durability.

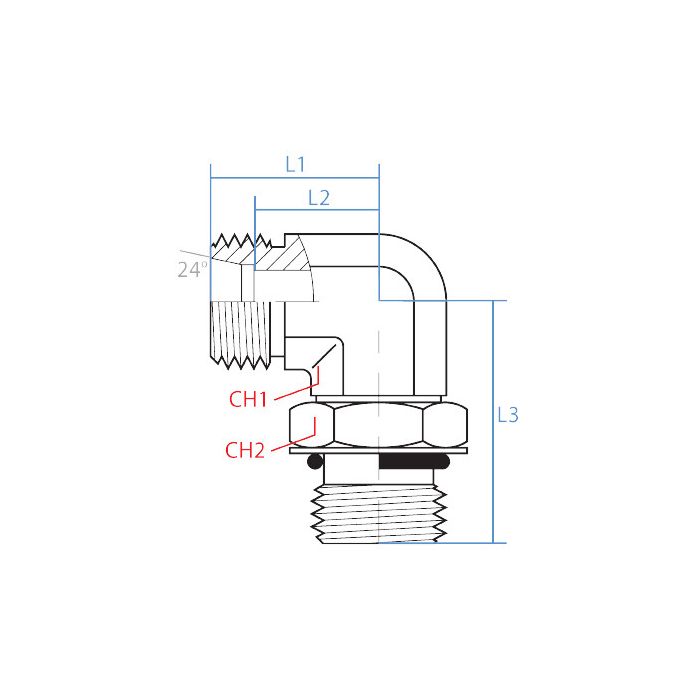

The DIN tube side has a M16 X 1.5 thread and a L10 size. The ORB-SAE side features a 9/16 - 18 UNF thread and a 3/8" size. It has a Side 1 Width of 14mm, a Side 2 Width of 19mm, a L1 Length of 22mm, a L2 Length of 15mm and a L3 Length of 32mm.

SKU: 5077L-10-06C

Supplier Part Number (MPN): 5077L-10-06C

Specifications

Connection Size 2 3/8 in	Connection Type Male Metric, Male SAE ORB	Connection Type 1 Male DIN Tube	Connection Type 2 Male SAE ORB	Dimension Standards DIN 2353, ISO 11926, ISO 8434-1, SAE J1926	Dimensions 22 mm L	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 5077 Series	Thread Size 9/16-18 x M16x1.5

Product Questions & Answers (1)

Question by: Jimmy O on Nov 23, 2025, 6:09 AM

trying to swap from a DIN tube end over to an ORB port, is this elbow the right one for M16 x 1.5 on the tube side and 9/16-18 on the ORB side?

Answer by: Customer Support on Nov 24, 2025, 12:58 PM

For that mix of connections, it matches up as a 90 degree elbow with a DIN tube male end in M16 x 1.5 (L10) on one side and a male ORB SAE end in 9/16-18 UNF (3/8 inch size) on the other.
