90*Din X Msae Orb Adj Complete

Description & Features

This steel 90° elbow Adaptall fitting features a DIN tube connection on one side and an Orb-Sae connection on the other. The 90*Din X Msae Orb Adj Complete adapter is designed with a M18 X 1.5 DIN tube connection (L12) and a 3/4 - 16 UNF Orb-Sae connection (1/2").

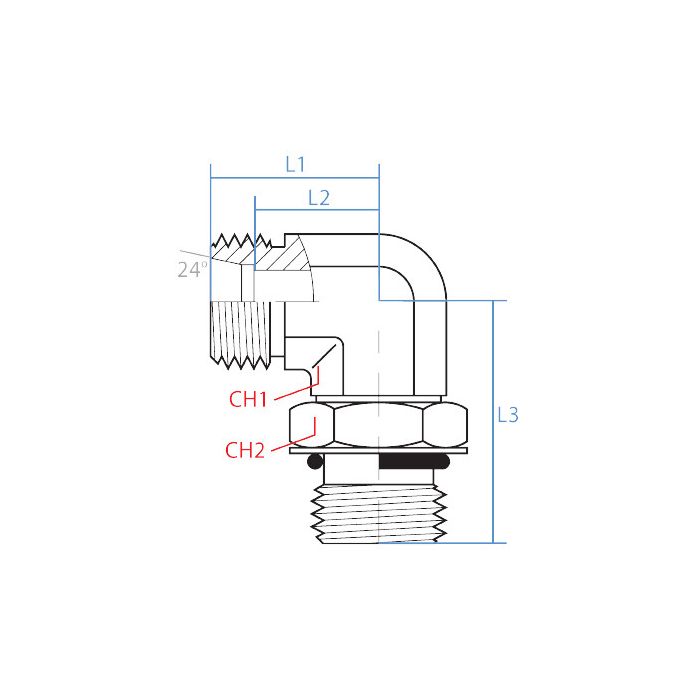

The Adaptall fitting has a Ch1 width of 19mm, a Ch2 width of 22mm, an L1 length of 24mm, an L2 length of 17mm, and an L3 length of 37mm.

SKU: 5077L-12-08C

Supplier Part Number (MPN): 5077L-12-08C

Specifications

Connection Size 1 L12	Connection Size 2 1/2 in	Connection Type Male Metric, Male SAE ORB	Connection Type 1 Male DIN Tube	Connection Type 2 Male SAE ORB	Dimension Standards DIN 2353, ISO 11926, ISO 8434-1, SAE J1926	Dimensions 24 mm L	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 19 x 22 mm	Material Steel	Material Construction Carbon Steel	Series 5077 Series	Thread Size M18x1.5 x 3/4-16

Product Questions & Answers (3)

Question by: Marvin E on Feb 25, 2026, 2:57 PM

Will this fitting hold up okay in a hydraulic system running at, say, 3000 psi?

Answer by: Customer Support on Feb 27, 2026, 6:52 AM

This Adaptall fitting is made of steel, which should provide sufficient strength for typical hydraulic applications, but specific pressure ratings aren't listed.

Question by: Warren W on Nov 22, 2025, 8:08 PM

got a DIN tube line running M18 x 1.5 that needs to tie into a 3/4-16 UNF ORB port on a valve block, this the right fitting to make that happen?

Answer by: Customer Support on Nov 24, 2025, 6:56 AM

That's what this one's built for. One end is a male M18 x 1.5 DIN tube connection sized at L12, and the other is a male 3/4-16 UNF ORB-SAE at the 1/2" size. Steel construction, 90-degree elbow, so you're routing the line at a right angle as you bridge those two connection types. Fits the application you're describing.

Question by: Daryl C on Aug 5, 2025, 3:49 PM

trying to swap a line over, is this the 90 degree elbow that goes from M18 x 1.5 DIN (L12) to a 3/4-16 UNF ORB (1/2")?

Answer by: Customer Support on Aug 7, 2025, 6:25 AM

The connections on this elbow are M18 x 1.5 DIN tube on one side (size L12, male) and 3/4 - 16 UNF ORB-SAE on the other (1/2", male). It is a steel 90 degree elbow adapter.
