90*Din X Msae Orb Adj Complete

Description & Features

A 90° elbow configuration made from steel, this Adaptall fitting connects a DIN tube end (M26 x 1.5 male, L18 size) to an SAE O-Ring Boss male port sized at 5/8" (7/8-14 UNF thread). The adjustable design on the ORB side allows for rotational positioning before final torque, making it straightforward to align the fitting within tight or angled installations.

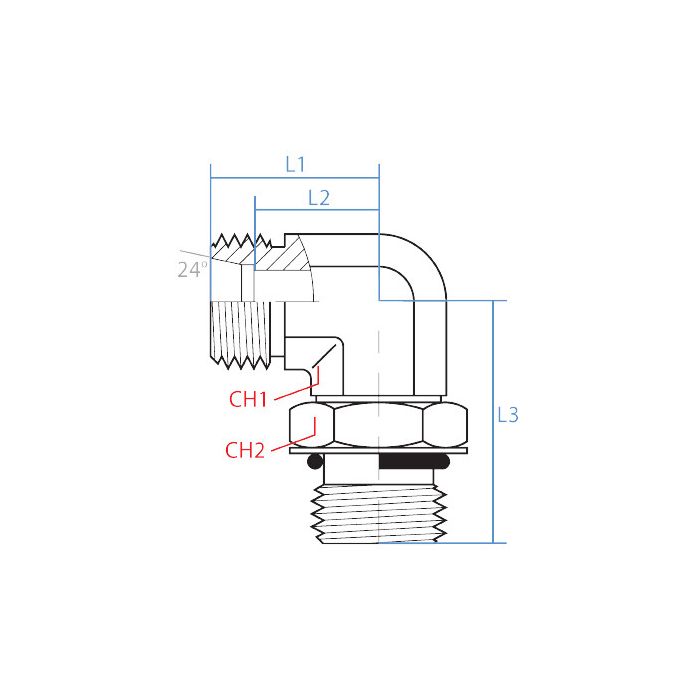

The 90° Din X Msae Orb Adj Complete carries matching 27mm wrench flats on both sides, with an overall assembly length of 47mm and individual end lengths of 31mm and 23.5mm on sides one and two respectively. As part of the Adaptall system, this fitting is suited for hydraulic circuit connections where a DIN metric tube interface must transition to an SAE ORB port at a right angle.

SKU: 5077L-18-10C

Supplier Part Number (MPN): 5077L-18-10C

Specifications

Connection Size 1 18 mm	Connection Size 2 5/8 in	Connection Type Male Metric, Male SAE ORB	Connection Type 1 Male DIN Tube	Connection Type 2 Male SAE ORB	Dimension Standards DIN 2353, ISO 11926, ISO 8434-1, SAE J1926	Dimensions 31 mm L	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 5077 Series	Thread Size 7/8-14 x M26x1.5

Product Questions & Answers (3)

Question by: Todd S on Dec 17, 2025, 12:35 PM

trying to swap a DIN tube end over to an SAE ORB port, is this the one with the M26 x 1.5 on one side and 7/8-14 on the other?

Answer by: Customer Support on Dec 18, 2025, 4:57 PM

For a DIN to ORB transition, it matches a male DIN tube end M26 x 1.5 (L18) on side one and a male SAE O-Ring Boss thread 7/8-14 UNF for a 5/8 inch ORB port on side two, laid out as a 90 degree elbow.

Question by: Freddie W on Nov 12, 2025, 4:40 PM

Got a hydraulic line coming off a metric DIN tube fitting that needs to turn 90 degrees into an SAE ORB port, this the right piece for that?

Answer by: Customer Support on Nov 14, 2025, 9:45 AM

Yeah, that's exactly what this fitting handles. One end is a DIN tube connection, M26 x 1.5 male thread at L18 size, and the other end is a 5/8" SAE O-Ring Boss male port running a 7/8-14 UNF thread. The 90 degree elbow gets you that right-angle turn between the two. If those specs line up with your ports, you're in good shape.

Question by: Larry O on Dec 30, 2025, 4:12 PM

So this fitting has a different size on each end, right? Just want to make sure I'm seeing that correct.

Answer by: Customer Support on Jan 1, 2026, 10:43 AM

That's correct. One side is a DIN tube end (M26 x 1.5 male, L18 size), and the other is an SAE O-Ring Boss male port sized at 5/8" (7/8-14 UNF thread).
