90*Din X Msae Orb Adj Complete

Description & Features

The 90° elbow fitting from Adaptall is crafted from durable steel, offering reliable performance in demanding industrial environments. Designed with a 90° bend, this fitting features an M30 x 2.0 male DIN tube connection on one end and a 3/4" ORB-SAE male thread on the other, ensuring compatibility with a variety of hydraulic systems. With a compact form factor, including a length of 35mm and a width of 27mm on one side, it is ideal for tight spaces where precision and efficiency are paramount.

The product is engineered for robust applications, integrating smoothly into systems that require secure connections and minimal leakage. The 32mm width at the second connection point ensures a solid fit while maintaining ease of installation and adjustment. This component exemplifies Adaptall's commitment to high-quality manufacturing standards, making it a dependable choice for professionals seeking reliable hydraulic solutions.

SKU: 5077L-22-12C

Supplier Part Number (MPN): 5077L-22-12C

Specifications

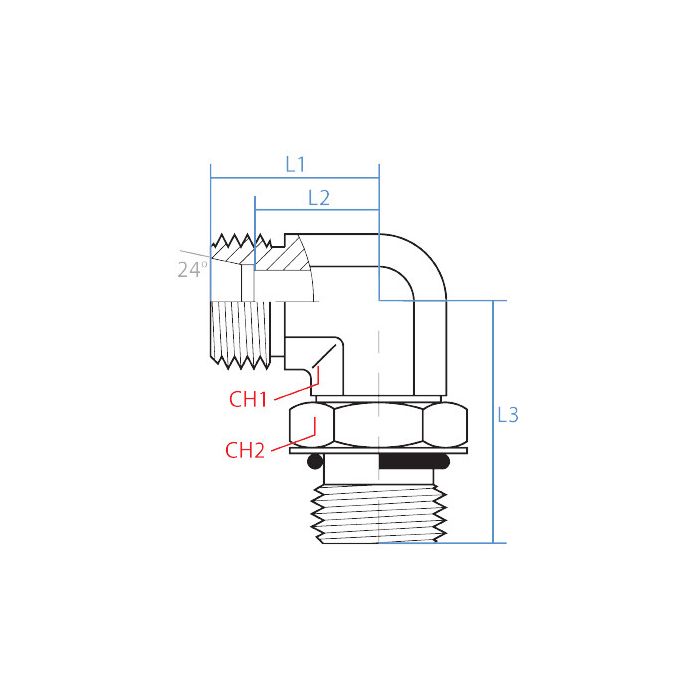

CH1 Width 27mm	CH2 Width 32mm	L1 Length 35mm	L2 Length 27.5mm	L3 Length 49mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M30 X 2.0	Side 1 Gender M	Side 1 Size L22	Side 1 Type Din Tube	Side 2 Callout 1-1/16 - 12 UN	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5077L-22-12C	Product Weight 0.54 lbs

Product Questions & Answers (2)

Question by: Lyle A on May 29, 2025, 6:19 PM

got a tight 90 on a hydraulic line runnin off a DIN tube port, the M30 x 2.0 size specifically. does this thing go directly to a 3/4" ORB port on the other end without needing extra adapters in between?

Answer by: Customer Support on May 31, 2025, 4:30 PM

That's what this fitting does. One end is M30 x 2.0 male DIN tube, the other is a 3/4" male ORB-SAE, so you're going straight from one to the other in a single piece. The 90 degree elbow handles the direction change right there, no additional adapters needed between those two connection types.

Question by: Terry K on Jun 3, 2025, 9:33 AM

What’s the width on each end of this elbow? Just need to make sure it'll fit in the space I got.

Answer by: Customer Support on Jun 5, 2025, 6:59 AM

The width on one side is 27mm, and it's 32mm on the other end.
