Din Union Tee Complete

Ask A Question

Description & Features

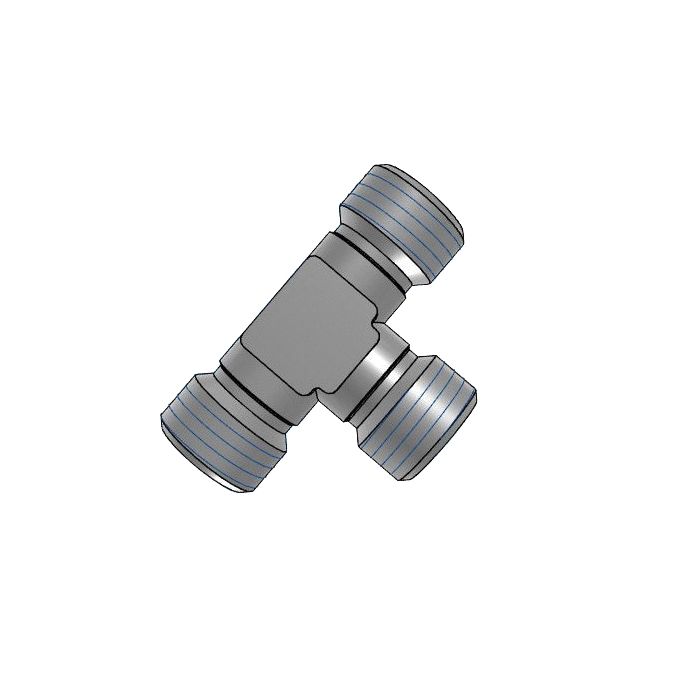

This steel DIN union tee complete features Adaptall construction and a tee shape.

It offers reliable connections with three DIN tube ends, each sized for L08 and M14 x 1.5 callouts.

SKU: 5080L-08C

Supplier Part Number (MPN): 5080L-08C

Specifications

Brand adapt-all	Connection Size 1 8 mm	Connection Size 2 8 mm	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Connection Type 3 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 40 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 12 mm	Material Steel	Material Construction Carbon Steel	Series 5080 Series	Thread Size M14x1.5

Product Questions & Answers (2)

Question by: Jimmy M on Feb 20, 2026, 10:44 AM

trying to tee off a DIN tube run, are all three ends on this thing the same size?

Answer by: Customer Support on Feb 22, 2026, 6:07 AM

All three ports are DIN tube ends in an Adaptall tee, and they are all the same callout: L08 with M14 x 1.5 male ends.

Question by: Denise M on Jan 1, 2026, 3:45 PM

All three ports on this tee the same size and thread pitch? Trying to make sure it'll work for splitting a single L08 line into two directions.

Answer by: Customer Support on Jan 2, 2026, 5:32 PM

All three connections are identical on this one. Each port is sized for L08 with an M14 x 1.5 thread callout, and all three are male DIN tube ends. So if you're splitting one L08 line into two, the geometry works out evenly across the whole fitting.
