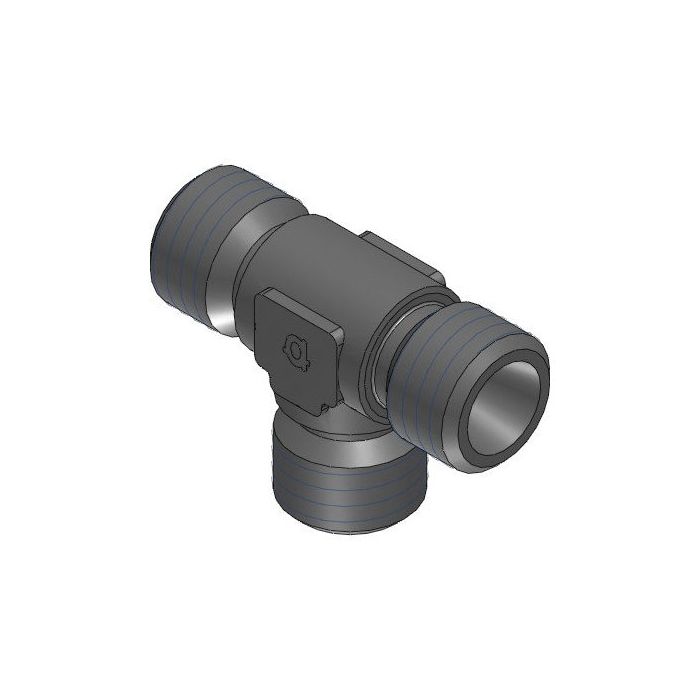

main product photo

Din Union Tee

Ask A Question

Description & Features

This Adaptall DIN union tee features a tee shape and is constructed from steel for durability. It is designed with three DIN tube connections, each with a M16 x 1.5 callout.

Each side of this union tee measures L10 in size, with a 14mm Adaptall channel width. The Adaptall L1 length is 22mm, and the Adaptall L2 length is 15mm.

SKU: 5080L-10

Supplier Part Number (MPN): 5080L-10

Specifications

Brand
adapt-all
Connection Size 2
10 mm
Connection Size 3
S10
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Connection Type 3
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
42 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
5080 Series
Thread Size
M16x1.5

Product Questions & Answers (1)

Question by: Dwayne R on Feb 27, 2026, 1:16 PM
What kind of material is this tee made out of?
Answer by: Customer Support on Mar 1, 2026, 6:23 AM
It's made from steel, so it ought to hold up well.
