Din Union Tee

Description & Features

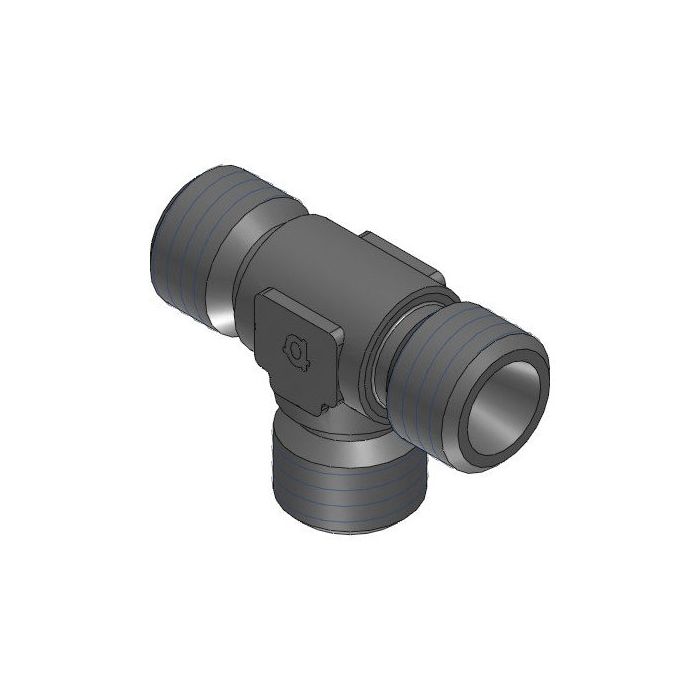

Manufactured from steel, this tee-shaped union fitting from Adaptall is designed for DIN tube connections in light-duty hydraulic line configurations. All three ports carry an M18 x 1.5 male DIN tube end in size L12, making this a symmetrical union tee suited for branching a single hydraulic line into two directions at the same thread size and tube OD.

The Din Union Tee measures 24mm along the primary axis (L1) and 17mm on the branch leg (L2), with a 17mm across-flats width. Its all-steel construction and consistent port sizing across all three sides simplify installation in metric hydraulic assemblies where a uniform DIN tube standard is required throughout.

SKU: 5080L-12

Supplier Part Number (MPN): 5080L-12

Specifications

CH Width 17mm	L1 Length 24mm	L2 Length 17mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Side 3 Callout M18 X 1.5	Side 3 Gender M	Side 3 Size L12	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080L-12	Product Weight 0.18 lbs

Product Questions & Answers (1)

Question by: Curt W on Apr 29, 2025, 6:24 PM

all three ports on this thing the same thread size, or do they vary?

Answer by: Customer Support on May 1, 2025, 6:00 AM

All three ports are M18 x 1.5 male DIN tube connections, L12 sizing across the board. No mixing of thread sizes or genders on this one, so you're working with a uniform tee throughout.
