Din Union Tee Complete

Ask A Question

Description & Features

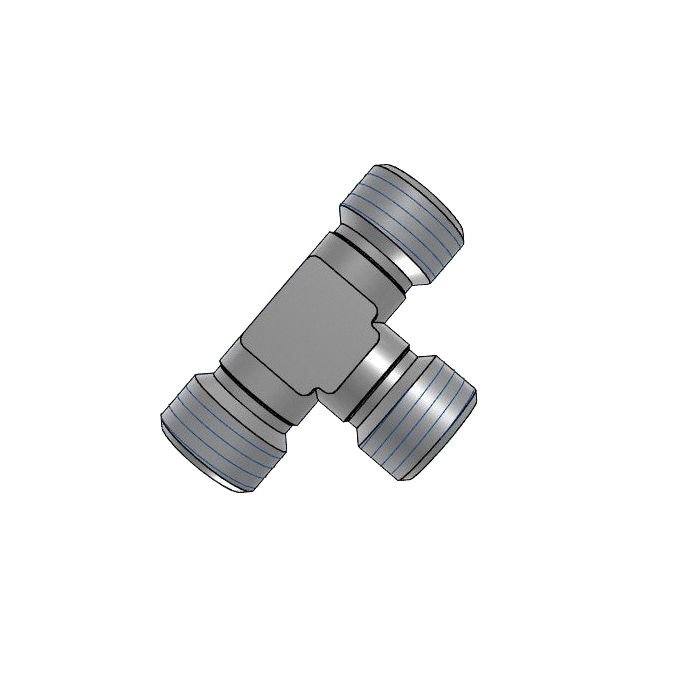

A steel tee fitting designed for DIN tube connections, this Din Union Tee Complete provides equal M18 x 1.5 male threaded ports on all three sides, making it well-suited for hydraulic line branching where a consistent connection type and size is required throughout. The L12 sizing is uniform across all three ports, simplifying installation in systems that use standardized DIN tube fittings.

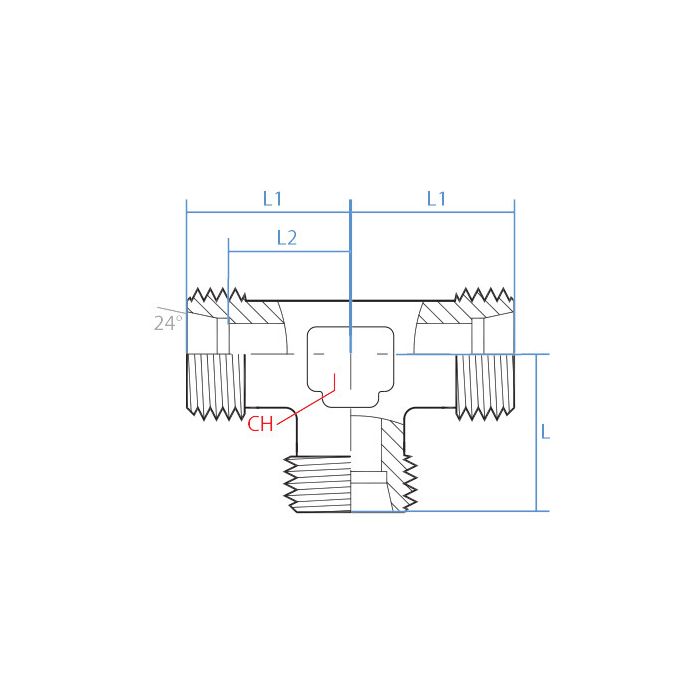

Manufactured by Adaptall, the fitting measures 24mm along the primary axis (L1) and 17mm on the branch dimension (L2), with a 17mm ch width. Its all-steel construction supports use in demanding hydraulic circuits where durability and thread integrity matter.

SKU: 5080L-12C

Supplier Part Number (MPN): 5080L-12C

Specifications

Brand
adapt-all
Connection Size 1
L12
Connection Size 2
12 mm
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Connection Type 3
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
48 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
17 mm
Material
Steel
Material Construction
Carbon Steel
Series
5080 Series
Thread Size
M18x1.5

Product Questions & Answers (3)

Question by: Duane F on Sep 3, 2025, 7:51 AM
need to split one DIN tube line into two, are all three ends on this tee the same size?
Answer by: Customer Support on Sep 5, 2025, 6:46 AM
For branching a hydraulic line, this tee keeps it simple because all three ports match. Each side is an M18 x 1.5 male DIN tube connection in size L12, so you are not mixing thread sizes or styles on the run and the branch.
Question by: Roger W on Nov 27, 2025, 8:36 AM
Will this tee work okay with regular hydraulic tubing?
Answer by: Customer Support on Nov 28, 2025, 10:46 AM
This tee is designed for DIN tube connections, specifically with M18 x 1.5 male threads on all three ports. It's intended for systems already using DIN standard fittings.
Question by: Ray G on Oct 22, 2025, 5:41 PM
All three ports on this thing are the same size and thread, right? Trying to branch a hydraulic line and I need everything to match up without adapters.
Answer by: Customer Support on Oct 24, 2025, 12:00 PM
All three ports are identical, M18 x 1.5 male thread with L12 sizing across the board. No mixing, no mismatched ends. If your system is already running DIN tube fittings at that size, you can branch straight off this tee without needing any additional adapters in between.
