Din Union Tee

Ask A Question

Description & Features

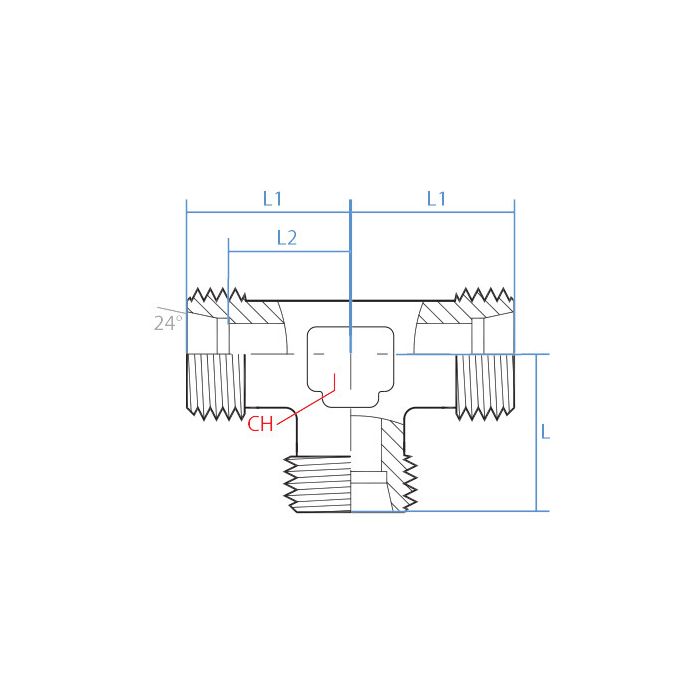

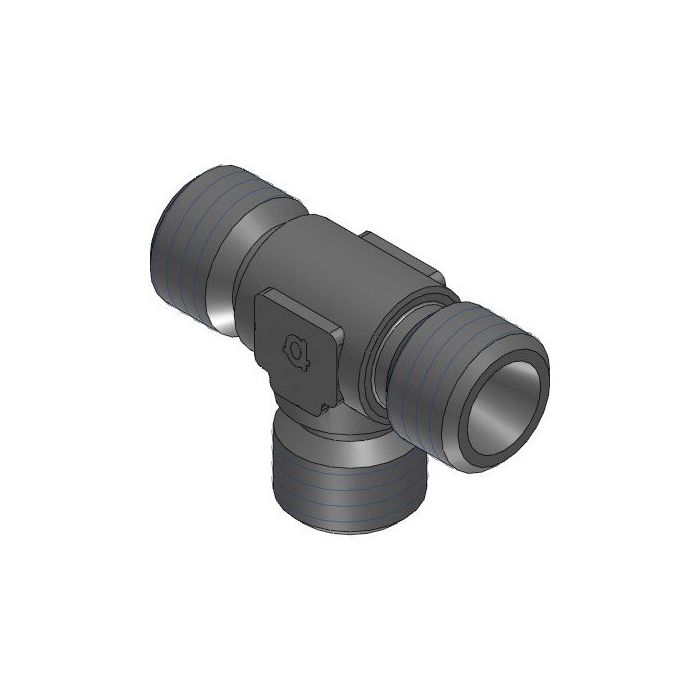

Manufactured from steel, this Adaptall Din Union Tee provides a three-way connection in a tee configuration, with all three ports terminating in M22 x 1.5 male Din Tube fittings at the L15 size. The uniform port configuration across all three sides simplifies assembly in symmetrical or branching hydraulic circuits where consistent thread sizing is required throughout the junction.

Rated as a light-duty DIN fitting, the 5080L-15 carries a channel width of 19mm and port lengths of 28mm and 21mm on sides one and two respectively. Its all-steel construction makes it suitable for demanding industrial hydraulic environments where durability and thread integrity are priorities.

SKU: 5080L-15

Supplier Part Number (MPN): 5080L-15

Specifications

Brand
adapt-all
Connection Size 1
L15
Connection Size 2
15 mm
Connection Size 3
L15
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Connection Type 3
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
55 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
5080 Series
Thread Size
M22x1.5

Product Questions & Answers (2)

Question by: Neal M on Mar 13, 2026, 6:55 PM
all three ports on this tee the same thread size, M22 x 1.5?
Answer by: Customer Support on Mar 15, 2026, 4:49 PM
Every port on the 5080L-15 is M22 x 1.5, male DIN tube on all three sides. So whether you're running a straight branch line or splitting flow in multiple directions, you're working with the same thread spec across the board. No mismatched ends to worry about.
Question by: Brett B on Feb 15, 2026, 10:12 AM
What size is this tee fitting? Gotta make sure it'll work with my existing setup.
Answer by: Customer Support on Feb 17, 2026, 7:59 AM
It's designed for use with M22 x 1.5 DIN tubes on all three sides. The Adaptall Side 1, Side 2, and Side 3 Callouts are all M22 x 1.5, with an L15 size designation for each.
