Din Union Tee Complete

Description & Features

The Din Union Tee Complete is a high-quality connection solution engineered by Adaptall America. Manufactured from durable steel this tee fitting is ideal for various professional settings requiring reliable and secure connections.

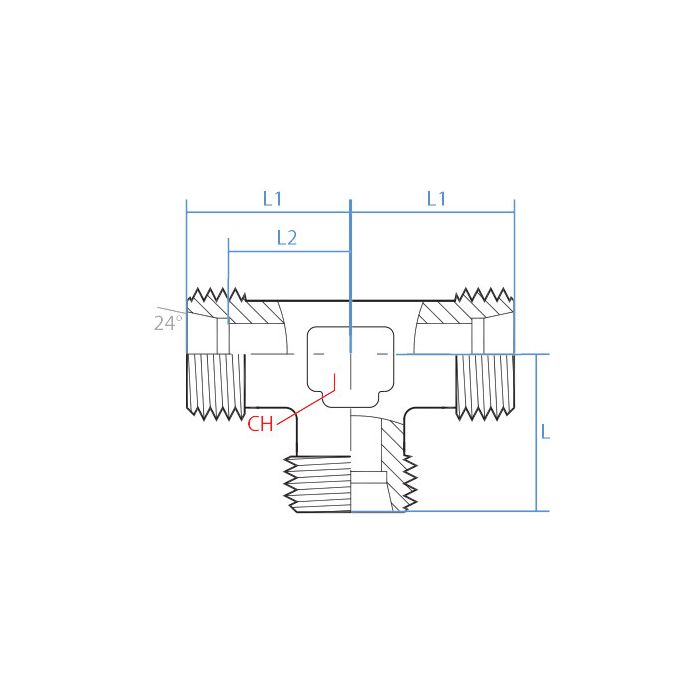

Featuring three M22 x 1.5 DIN tube connections each with a male gender and L15 size this fitting provides precision with a CH width of 19mm L1 length of 28mm and L2 length of 21mm. Simplifying installation it does not require thread sealant.

Designed without adjustable components battery blades calibration case or other accessories the product ensures ease of use. The absence of color-coding diode electrical flag check valve machine mountability mandrel requirement ratcheting mechanism remote control or switch connector enhances its straightforward application in industrial environments.

Supplier Part Number: 5080L-15C

Specifications

CH Width 19mm	L1 Length 28mm	L2 Length 21mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size L15	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Side 3 Callout M22 X 1.5	Side 3 Gender M	Side 3 Size L15	Side 3 Type DIN TUBE	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5080L-15C	Product Weight 0.29 lbs

Product Questions & Answers (1)

Question by: Ralph M on May 24, 2025, 12:43 PM

All three ports on this thing are M22 x 1.5 DIN tube connections, right? Just want to make sure before I order a handful of these for a job we got coming up.

Answer by: Customer Support on May 26, 2025, 9:29 AM

All three connections are M22 x 1.5 DIN tube, male gender, L15 size across the board. No mixed thread types or sizes on this one, so if your lines are all running the same spec, it'll tie in clean without any adapters in between.
