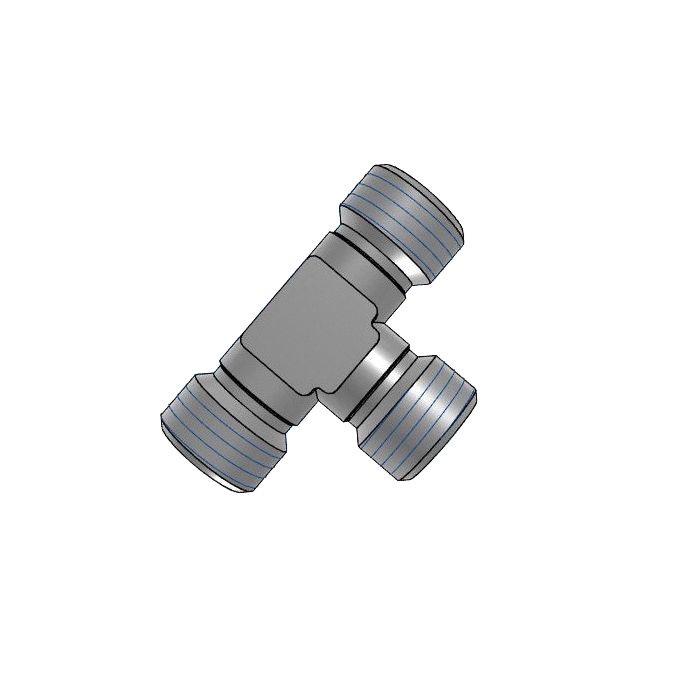

Din Union Tee Complete

Ask A Question

Description & Features

This steel DIN union tee complete features three DIN tube connections, all size L22 with M30 x 2.0 callouts and male genders.

This Adaptall tee fitting has a 27mm Adaptall Ch Width, a 35mm Adaptall L1 Length and a 27.5mm Adaptall L2 Length.

SKU: 5080L-22C

Supplier Part Number (MPN): 5080L-22C

Specifications

Brand
adapt-all
Connection Size 1
L22
Connection Size 2
22 mm
Connection Size 3
L22
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Connection Type 3
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
70 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
5080 Series
Thread Size
M30x2

Product Questions & Answers (3)

Question by: Dwayne W on Mar 3, 2026, 1:18 PM
got three L22 DIN tube runs to tie together, is this the tee that’s male M30 x 2.0 on all three ends
Answer by: Customer Support on Mar 5, 2026, 9:17 AM
For tying three DIN tube connections together in a tee, this one matches L22 on all three sides with M30 x 2.0 male threads on each connection.
Question by: Rod P on Jul 2, 2025, 12:56 PM
All three ports on this tee are the same size and thread, right? Just want to make sure before I order a handful of 'em.
Answer by: Customer Support on Jul 4, 2025, 6:17 AM
Correct on all counts. Every port is L22 with an M30 x 2.0 thread callout, and all three are male DIN tube connections. No mixing of sizes or genders across the ports, so you've got a fully uniform tee throughout.
Question by: Terry W on Aug 10, 2025, 11:15 AM
Just want to make sure, this tee fitting is all steel, right? Don't want no surprises.
Answer by: Customer Support on Aug 11, 2025, 8:25 PM
Correct, this DIN union tee is made of steel.
