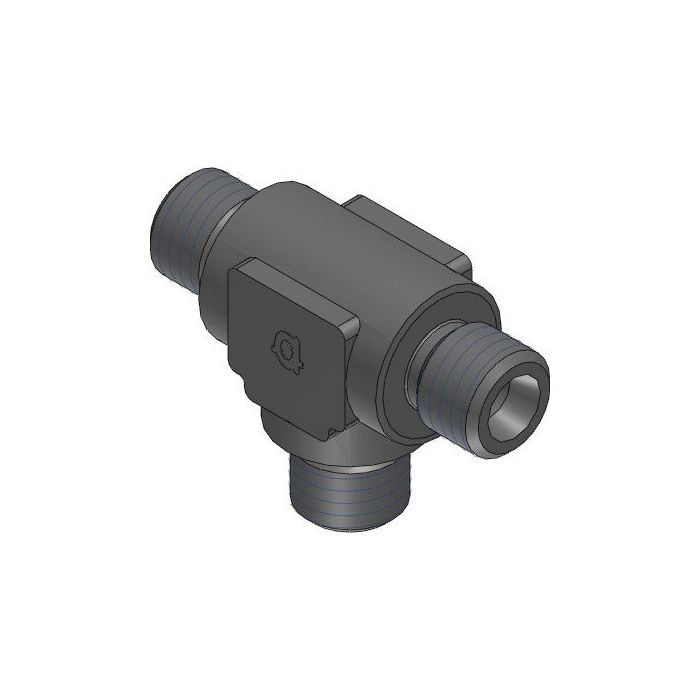

Din Union Tee Complete

Ask A Question

Description & Features

This Din Union Tee Complete features three DIN tube connections, each with M10 x 1.0 callouts. Each side features a male gender and LL06 size, conforming to DIN standards for reliable hydraulic connections.

Adaptall provides this tee, offering a versatile solution for splitting or combining flow in hydraulic circuits. The Adaptall L1 length is 15mm, L2 length is 9.5mm, and L3 length is 12mm.

SKU: 5080LL-06C

Supplier Part Number (MPN): 5080LL-06C

Specifications

Brand
adapt-all
Connection Size 1
LL06
Connection Size 2
LL06
Connection Type
Male Metric
Connection Type 1
Male Metric DIN 24 deg Tube
Connection Type 2
Male Metric DIN 24 deg Tube
Connection Type 3
Male Metric DIN 24 deg Tube
Dimension Standards
DIN 2353, ISO 8434-1
Dimensions
30 mm L
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
12 mm
Material
Steel
Material Construction
Carbon Steel
Series
5080 Series
Thread Size
M10x1

Product Questions & Answers (2)

Question by: Roy R on Mar 17, 2026, 8:53 PM
All three ports on this tee got the same M10 x 1.0 thread and LL06 sizing across the board?
Answer by: Customer Support on Mar 19, 2026, 6:27 AM
all three connections are identical. Each port is M10 x 1.0 with an LL06 DIN tube size and male gender, so there's no mixing or mismatching to worry about. Makes it straightforward when you're splitting or combining flow and need uniformity at every connection point.
Question by: Randy P on Jan 25, 2026, 2:48 PM
got three din tube lines i need to tie together, are all three ends on this tee the same size and thread?
Answer by: Customer Support on Jan 27, 2026, 8:01 AM
All three ports match. Each side is a DIN tube connection with an M10 x 1.0 callout, male gender, and LL06 size, so it is a straight three-way tee with the same connection on every end.
