Din Union Tee Complete

Description & Features

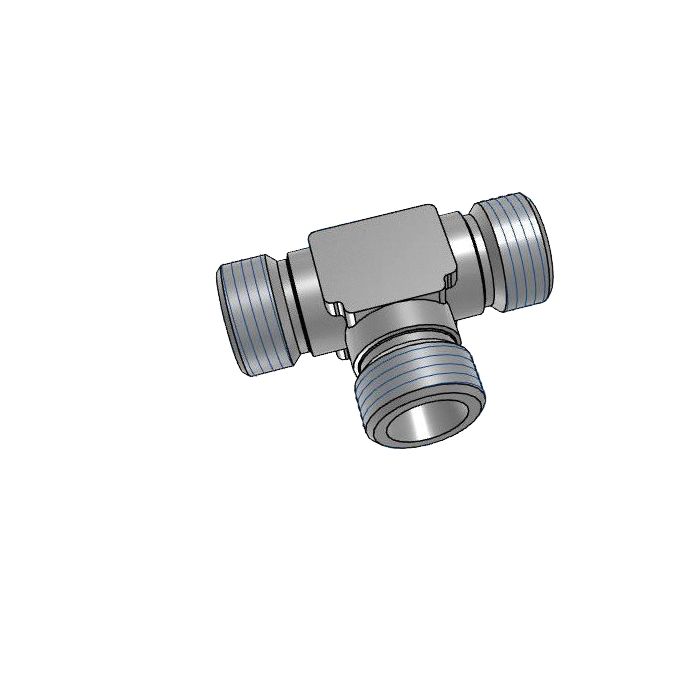

This steel DIN union tee complete features three DIN tube connections, each with M18 x 1.5 callouts and S10 size.

The Adaptall union tee has a channel width of 17mm. Adaptall L1 length: 25mm. Adaptall L2 length: 17.5mm.

SKU: 5080S-10C

Supplier Part Number (MPN): 5080S-10C

Brand adapt-all	Connection Size 2 10 mm	Connection Size 3 S10	Connection Type Male Metric	Connection Type 1 Male Metric DIN 24 deg Tube	Connection Type 2 Male Metric DIN 24 deg Tube	Connection Type 3 Male Metric DIN 24 deg Tube	Dimension Standards DIN 2353, ISO 8434-1	Dimensions 50 mm L	Finish Zinc-Plated	Fitting Type Tee	Hex Size 17 mm	Material Steel	Material Construction Carbon Steel	Series 5080 Series	Thread Size M18x1.5

Question by: Neil R on Feb 3, 2026, 7:40 PM

trying to tee off a DIN tube line, are all three ends on this one the same size?

Answer by: Customer Support on Feb 5, 2026, 8:07 AM

All three connections match. It’s a steel DIN union tee with three DIN tube ends, each called out as M18 x 1.5, male, size S10.
